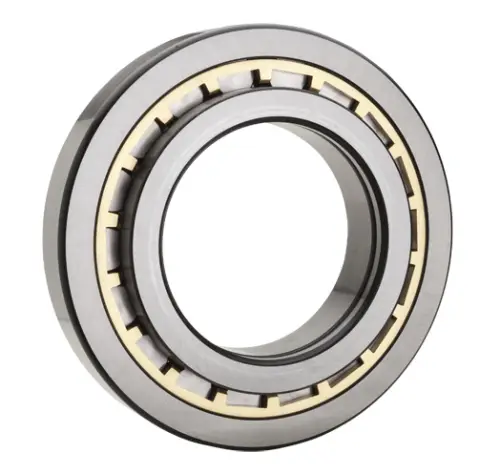

NTN NH240E
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
High Strength Machined Brass Rivetless w/ square holes
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
1060000 N
Dynamic Load Rating
765000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

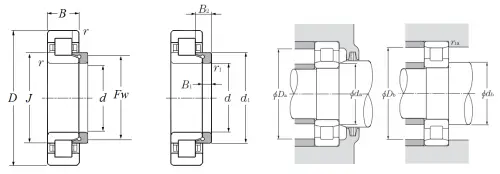

Dimensional Specifications
d
200.000 mm
D
360.000 mm
B
58.000 mm
Fw
243.000 mm
d1
259.000 mm
B1
14.000 mm
B2
23.000 mm
J
259.000 mm
r
4.000 mm
r1
4.000 mm
da min
216 mm
Da max
344 mm
