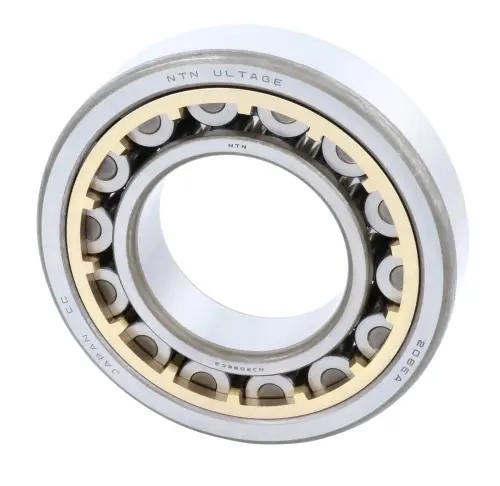

NTN NJ2209EG1C3
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Outside Ring Type
Two Ribbed Outer Ring
Material
Hardened Alloy Steel
Cage Material
High Strength Machined Brass Rivetless w/ square holes
Limiting Speed - Oil
9000 RPM
Limiting Speed - Grease
6800 RPM
Precision
ISO Class 0
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
C3
Static Load Rating
84500 N
Dynamic Load Rating
76000 N
Enclosure
Open
Weight
0.597 kg
Operating Temperature Range
-40 to 120 ºC

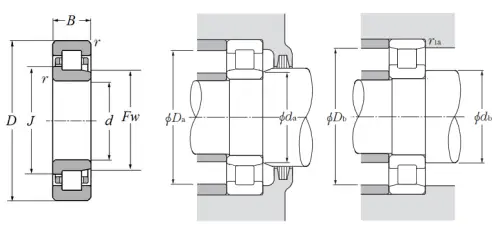

Dimensional Specifications
d
45.000 mm
D
85.000 mm
B
23.000 mm
Fw
54.500 mm
J
58.900 mm
r
1.000 mm
da min
51.500 mm
Da max
78.500 mm
r1as max
1.000 mm
