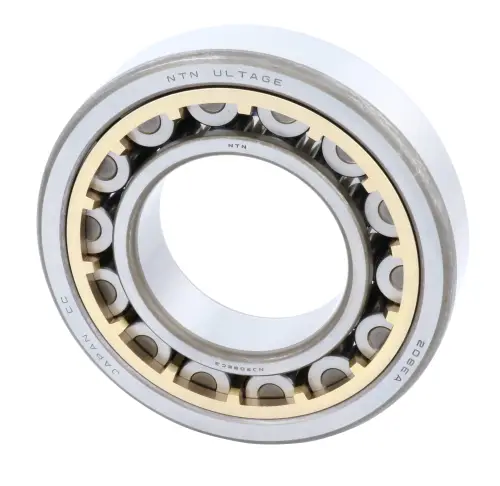

NTN NJ2309EG1C4
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
High Strength Machined Brass Rivetless w/ square holes
Limiting Speed - Oil
6800 RPM
Limiting Speed - Grease
5700 RPM
Precision
ISO Class 0
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
C4
Static Load Rating
153000 N
Dynamic Load Rating
137000 N
Enclosure
Open
Weight
1.389 kg
Operating Temperature Range
-40 to 120 ºC

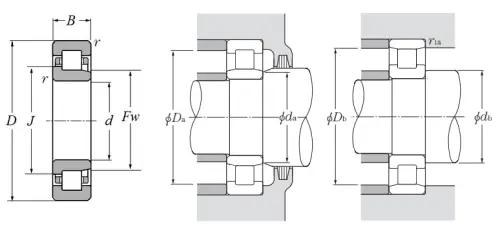

Dimensional Specifications
d
45.000 mm
D
100.000 mm
B
36.000 mm
Fw
58.500 mm
J
64.000 mm
r
1.500 mm
da min
53.000 mm
Da max
92.000 mm
r1as max
1.500 mm
