NTN NU1038
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Machined Carbon Steel
Limiting Speed - Oil
2700 RPM
Limiting Speed - Grease
2300 RPM
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
510000 N
Dynamic Load Rating
350000 N
Enclosure
Open
Weight
10.700 kg
Operating Temperature Range
-40 to 120 ºC

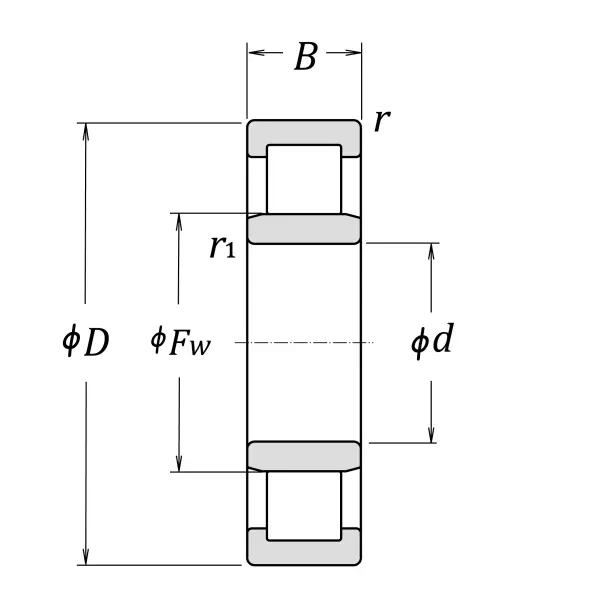

Dimensional Specifications
d
190.000 mm
D
290.000 mm
B
46.000 mm
Fw
215.000 mm
r
2.100 mm

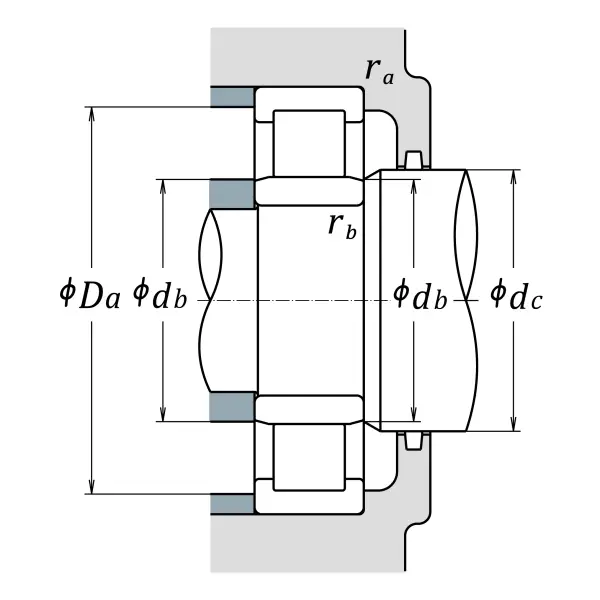

da min
201.000 mm
db min
201.000 mm
Da max
279.000 mm
Db max
279.000 mm
r1as max
2.000 mm
