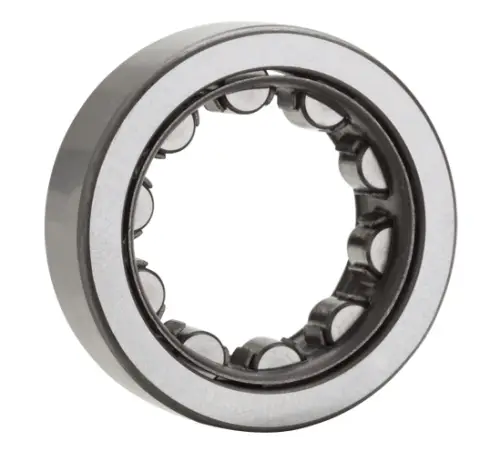

NTN NU238EG1C3
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
High Strength Machined Brass Rivetless w/ square holes
Limiting Speed - Oil
2000 RPM
Limiting Speed - Grease
1700 RPM
Precision
ISO Class 0
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
C3
Static Load Rating
955000 N
Dynamic Load Rating
695000 N
Enclosure
Open
Weight
22.409 kg
Operating Temperature Range
-40 to 120 ºC

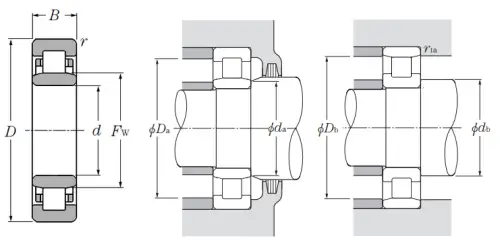

Dimensional Specifications
d
190.000 mm
D
340.000 mm
B
55.000 mm
Fw
230.000 mm
r
3.000 mm
da min
206 mm
Da max
324 mm
r1as max
3.000 mm
