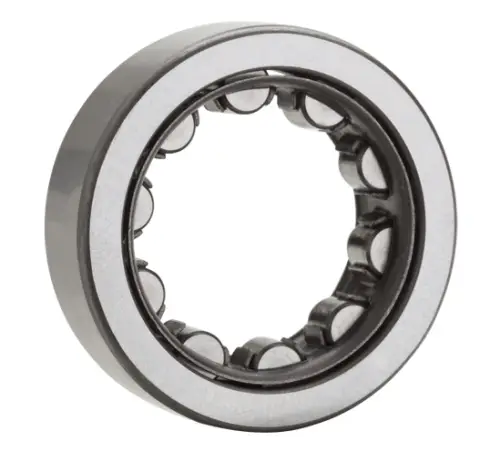

NTN NU336C3
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
High Strength, 2 piece, Machined Brass
Limiting Speed - Oil
2000 RPM
Limiting Speed - Grease
1700 RPM
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
C3
Static Load Rating
1150000 N
Dynamic Load Rating
905000 N
Enclosure
Open
Weight
44.200 kg
Operating Temperature Range
-40 to 120 ºC

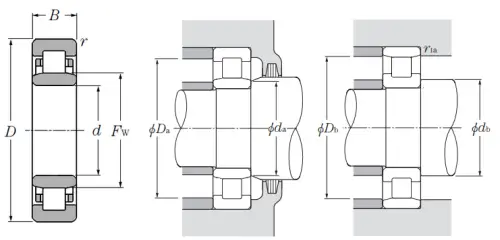

Dimensional Specifications
d
180.000 mm
D
380.000 mm
B
75.000 mm
Fw
232.000 mm
r
4.000 mm
da min
196 mm
db min
196.000 mm
Da max
364 mm
Db max
364.000 mm
r1as max
3.000 mm
