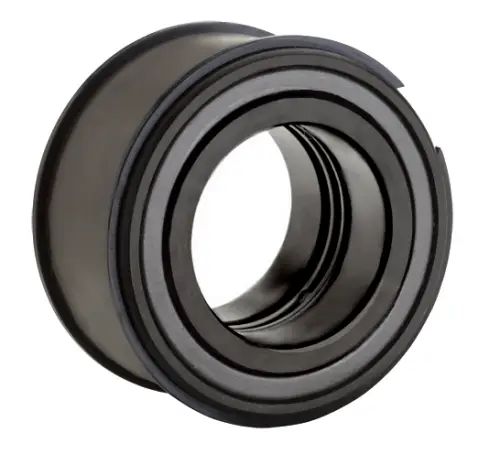

NTN SL04-5016NR
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Type
None
Cage Material
None
Limiting Speed - Grease
1300 RPM
Precision
ISO Class 0
Configuration
Two
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
350000 N
Dynamic Load Rating
205000 N
Enclosure
Double Shielded
Weight
2.675 kg
Operating Temperature Range
-40 to 120 ºC

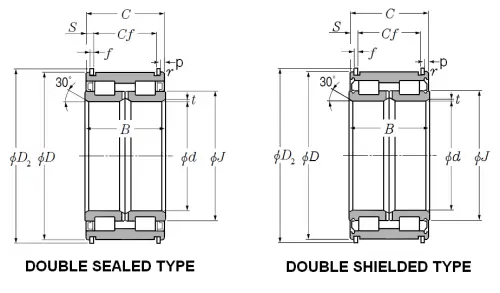

Dimensional Specifications
d
80.000 mm
D
125.000 mm
B
60.000 mm
C
59.000 mm
D1
119.710 mm
D2
129.500 mm
f
2.500 mm
p
45.500 mm
J
96.500 mm
Cf
48.000 mm
Cf1
48.000 mm
S
5.500 mm
E1
145.000 mm
t
1.000 mm
Angle of Chamfer
30 º
r
1.000 mm
da min
85.000 mm
