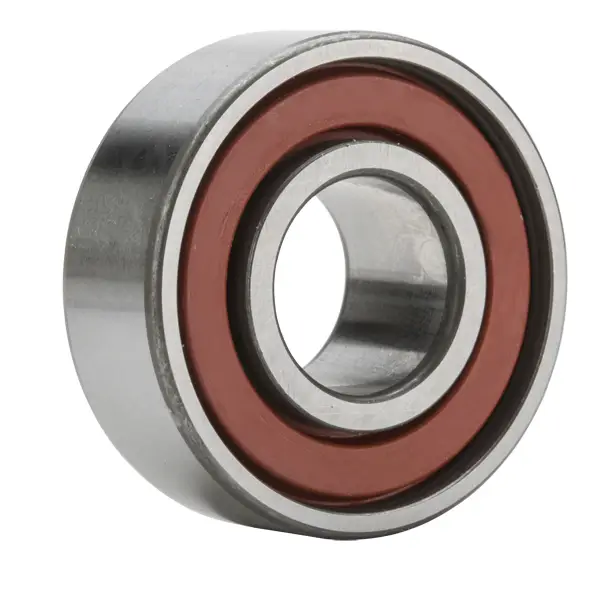

NTN WC88503C3
Single Row Radial Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
12000 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Configuration
One
Radial Internal Clearance
C3
Precision
ISO Class 0
Static Load Rating
4600 N
Dynamic Load Rating
9600 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
17.000 mm
D
40.000 mm
Be
14.288 mm
Bi
16.601 mm
Total Width
16.601 mm
r
0.600 mm
