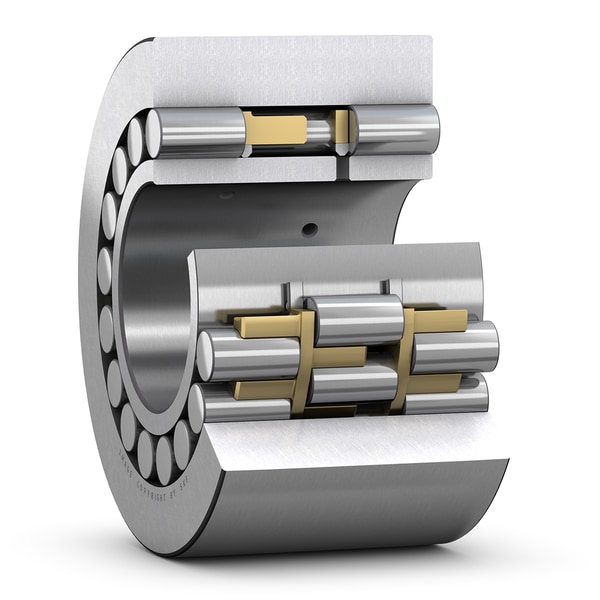

SKF 315515 AB
Backing bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
D
406.42 mm
Outside diameter
d
180.0 mm
Bore diameter
H
113.155 mm
Section height
B
224.0 mm
Total bearing width over inner ring(s)
C
224.0 mm
Total bearing width over outer ring(s)
F
217.305 mm
Raceway diameter inner ring
E
293.305 mm
Raceway diameter outer ring
b
11.0 mm
Width annular lubrication groove at inner ring
r
1.1 mm
Chamfer dimension outer ring
mass
171.0 kg
Product net weight
