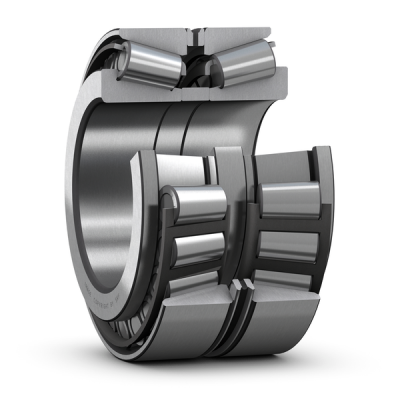

SKF 32017T66 X/DB
Matched tapered roller bearings arranged back-to-back
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
85.0 mm
Bore diameter
D
130.0 mm
Outside diameter
T
66.0 mm
Total width
d1
108.1 mm
Shoulder diameter of inner ring
C
52.0 mm
Width of outer rings
l
8.0 mm
Width of spacer ring
b
4.0 mm
Width of lubrication groove
K
3.0 mm
Diameter of lubrication hole
r1,2
1.5 mm
Chamfer dimension
r5
0.6 mm
Chamfer dimension
a
63.914 mm
Distance between pressure points
mass
2.87 kg
Product net weight
