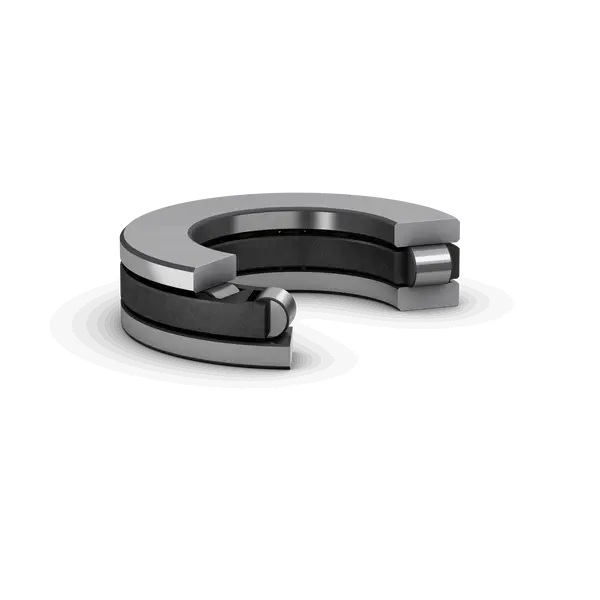

SKF 81108 TN
Single row cylindrical roller thrust bearing, single direction
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
40.0 mm
Bore diameter
D
60.0 mm
Outside diameter
H
13.0 mm
Height
d1
60.0 mm
Outside diameter shaft washer
D1
42.0 mm
Bore diameter housing washer
B
3.5 mm
Height shaft washer
r1,2
0.6 mm
Chamfer dimension housing washer
mass
0.107 kg
Product net weight
