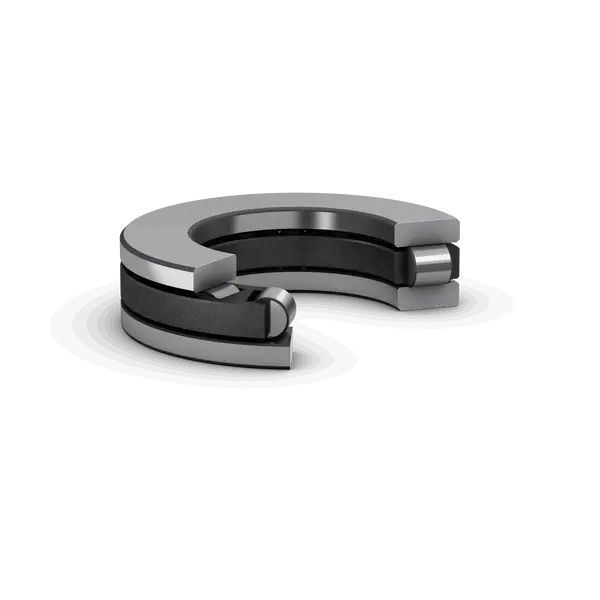

SKF 81222 TN
Single row cylindrical roller thrust bearing, single direction
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
110.0 mm
Bore diameter
D
160.0 mm
Outside diameter
H
38.0 mm
Height
d1
160.0 mm
Outside diameter shaft washer
D1
113.0 mm
Bore diameter housing washer
B
11.5 mm
Height shaft washer
r1,2
1.1 mm
Chamfer dimension housing washer
mass
2.29 kg
Product net weight
