SKF BT2B 332424/HA3

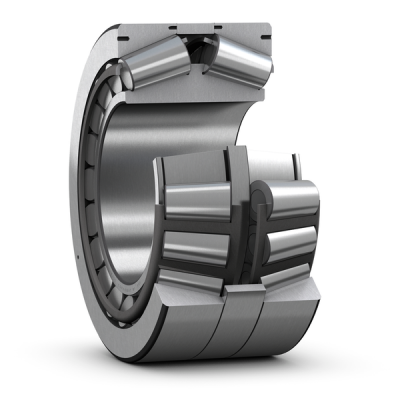

Double row tapered roller bearing, TDI design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
609.6 mm
Bore diameter
D
820.0 mm
Outside diameter
T
171.45 mm
Total width
B
171.45 mm
Width of inner ring
d1
643.95 mm
Shoulder diameter of inner ring (small side face)
D1
720.425 mm
Raceway diameter of outer ring (small side face)
r3,4
6.4 mm
Chamfer dimension of outer ring
mass
265.0 kg
Product net weight
