SKF BT4-8166 E9/C600

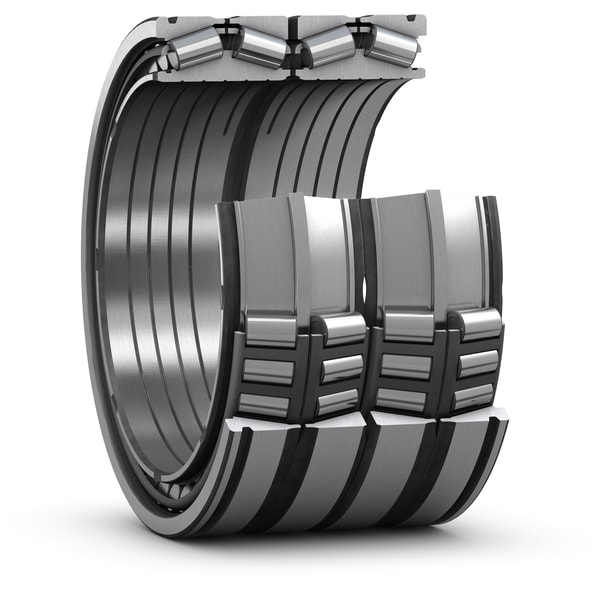

Four-row tapered roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
409.575 mm
Bore diameter
D
546.1 mm
Outside diameter
B
334.962 mm
Total bearing width over inner rings
T
334.962 mm
Total bearing width over outer rings
d1
428.0 mm
Abutment diameter shaft
D1
491.0 mm
Abutment diameter housing
r1,2
2.5 mm
Chamfer dimension inner ring
r3,4
6.4 mm
Outer ring radius (chamfer)
mass
215.0 kg
Product net weight
