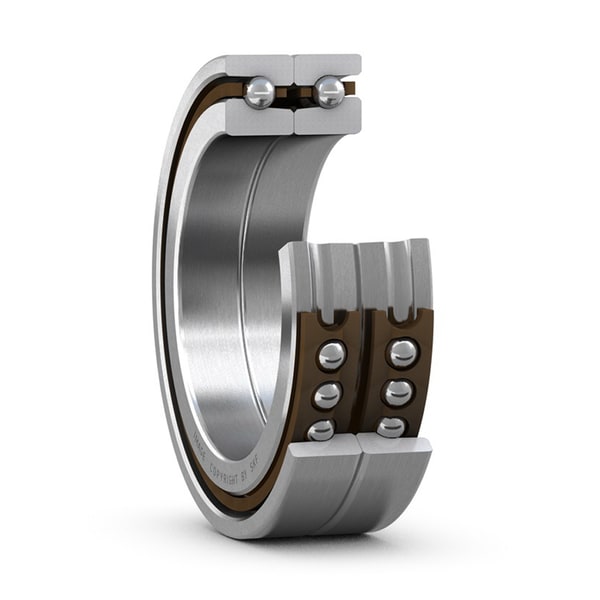

SKF BTM 130 ATN9/P4CDBA
Super-precision, high-speed design double direction angular contact thrust ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
130.0 mm
Bore diameter
D
200.0 mm
Outside diameter
H
63.0 mm
Bearing height
d1
162.6 mm
Shaft washer shoulder diameter (high shoulder)
D1
182.1 mm
Housing washer shoulder diameter (low shoulder)
r1,2
2.0 mm
Shaft washer chamfer radius
r3,4
1.0 mm
Housing washer small chamfer radius
mass
6.89 kg
Product net weight
Abutment dimensions
da
139.0 mm
Shaft abutment diameter
Da
195.0 mm
Housing abutment diameter
ra
2.0 mm
Fillet radius
rb
1.0 mm
Fillet radius
dn
158.3 mm
Oil nozzle position
