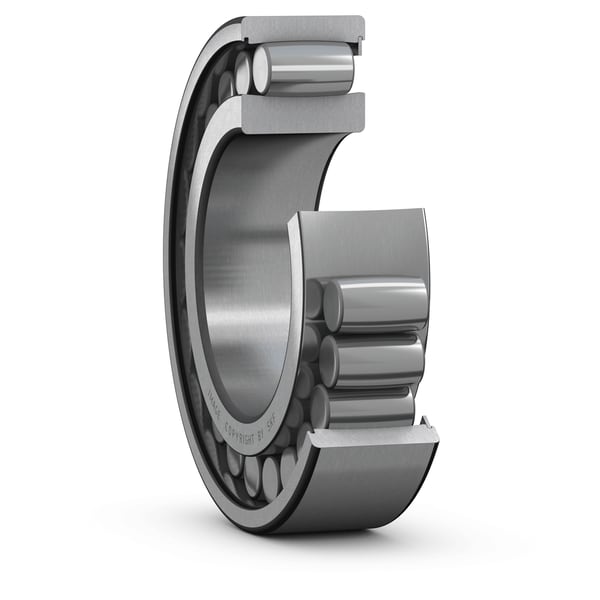

SKF C 2216 V

CARB toroidal roller bearings

Full complement CARB toroidal roller bearing

(BRAND)：SKF

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

Detailed data of

C 2216 V

CARB toroidal roller bearings

Dimensions

d 80.0 mm Bore diameter

D 140.0 mm Outside diameter

B 33.0 mm Width

d₂ 98.1 mm Shoulder diameter of inner ring

D₁ 125.0 mm Shoulder or recess diameter of outer ring

s₁ 9.1 mm Permissible axial displacement

s₂ 4.8 mm Permissible axial displacement

r_1,2 2.0 mm Chamfer dimension

mass 2.09 kg Product net weight
