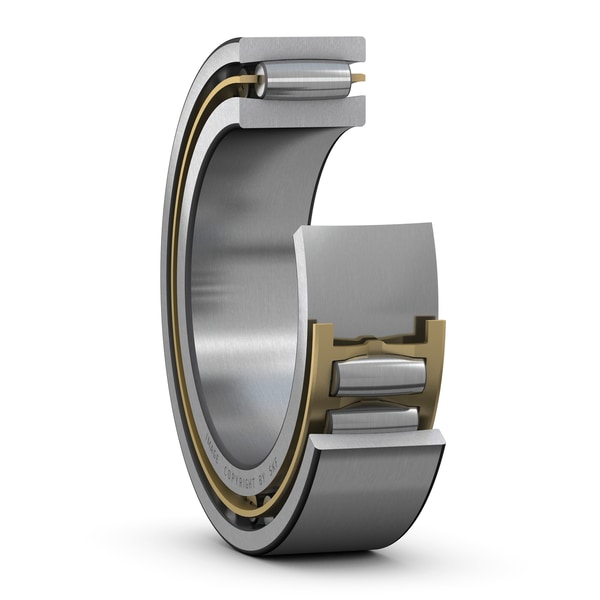

SKF C 3060 KM
CARB toroidal roller bearing with tapered bore (1:12)
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
300.0 mm
Bore diameter
D
460.0 mm
Outside diameter
B
118.0 mm
Width
d2
351.0 mm
Shoulder diameter of inner ring
D1
417.0 mm
Shoulder or recess diameter of outer ring
s1
20.0 mm
Permissible axial displacement
r1,2
4.0 mm
Chamfer dimension
mass
72.0 kg
Product net weight
