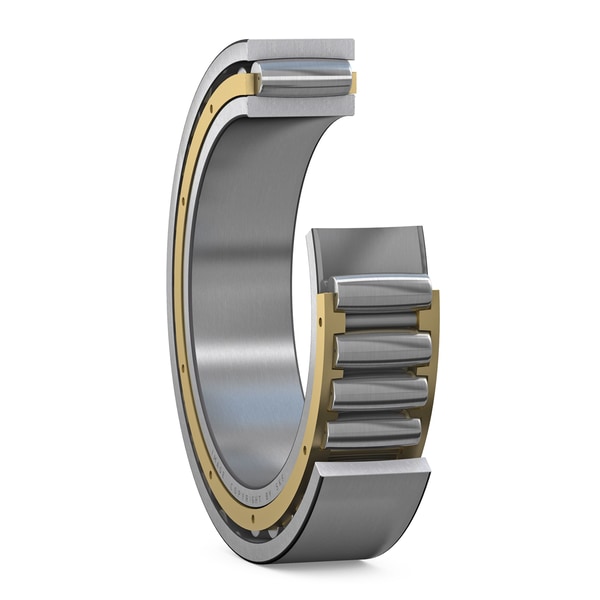

SKF C 3196 KMB/C3

CARB toroidal roller bearings

CARB toroidal roller bearing with tapered bore (1:12)

(BRAND)：SKF

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

Detailed data of

C 3196 KMB/C3

CARB toroidal roller bearings

Dimensions

d 480.0 mm Bore diameter

D 790.0 mm Outside diameter

B 248.0 mm Width

d₂ 578.0 mm Shoulder diameter of inner ring

D₁ 701.0 mm Shoulder or recess diameter of outer ring

s₁ 35.1 mm Permissible axial displacement

r_1,2 7.5 mm Chamfer dimension

mass 508.0 kg Product net weight
