SKF NU 1988 MA

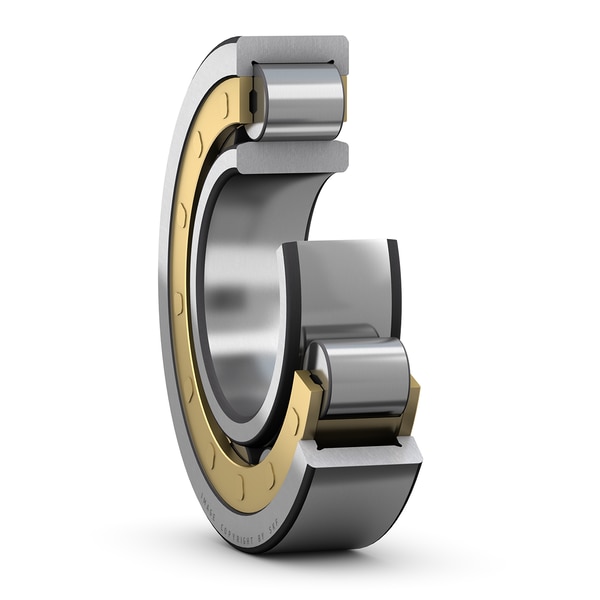

Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
440.0 mm
Bore diameter
D
600.0 mm
Outside diameter
B
74.0 mm
Width
D1
544.0 mm
Shoulder diameter of outer ring
F
482.0 mm
Raceway diameter of inner ring
r1,2
4.0 mm
Chamfer dimension
s
5.5 mm
Permissible axial displacement
mass
64.0 kg
Product net weight
