SKF NUP 226 ECJ

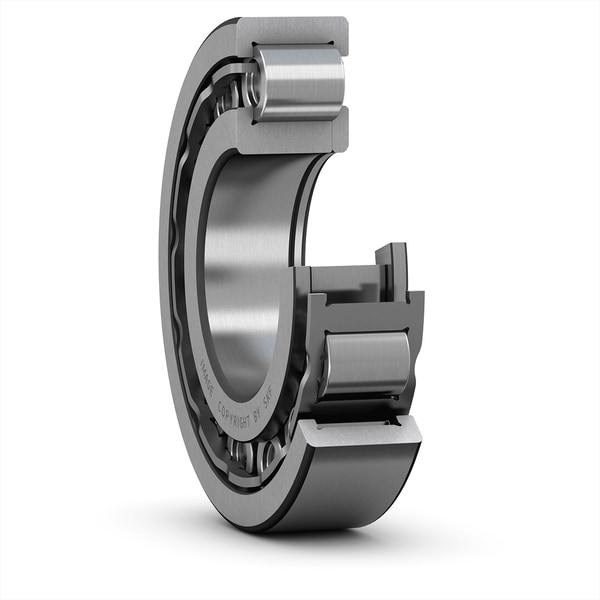

Single row cylindrical roller bearing, NUP design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
130.0 mm
Bore diameter
D
230.0 mm
Outside diameter
B
40.0 mm
Width
d1
164.0 mm
Shoulder diameter of inner ring
D1
200.3 mm
Shoulder diameter of outer ring
F
153.5 mm
Raceway diameter of inner ring
r1,2
3.0 mm
Chamfer dimension
r3,4
3.0 mm
Chamfer dimension of loose flange ring
mass
6.48 kg
Product net weight
