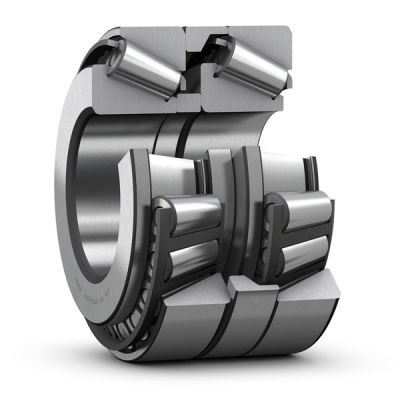

SKF T7FC 045T62/CL7CDTC10
Matched tapered roller bearings arranged in tandem
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
45.0 mm
Bore diameter
D
95.0 mm
Outside diameter
T
62.0 mm
Total width
d1
73.4 mm
Shoulder diameter of inner ring
B
59.5 mm
Width of inner rings
C
53.0 mm
Width of outer rings
r1,2
2.5 mm
Chamfer dimension
r3,4
2.5 mm
Chamfer dimension
a
33.0 mm
Distance between pressure points
mass
2.04 kg
Product net weight
