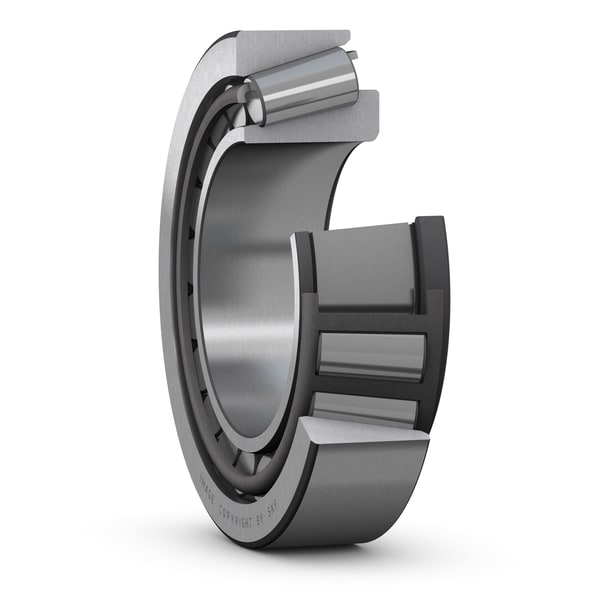

SKF T7FC 060
Single row tapered roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
60.0 mm
Bore diameter
D
125.0 mm
Outside diameter
T
37.0 mm
Total width
d1
97.2 mm
Shoulder diameter of inner ring
B
33.5 mm
Width of inner ring
C
26.0 mm
Width of outer ring
r1,2
3.0 mm
Chamfer dimension of inner ring
r3,4
3.0 mm
Chamfer dimension of outer ring
a
41.0 mm
Distance side face to pressure point
mass
2.06 kg
Product net weight
