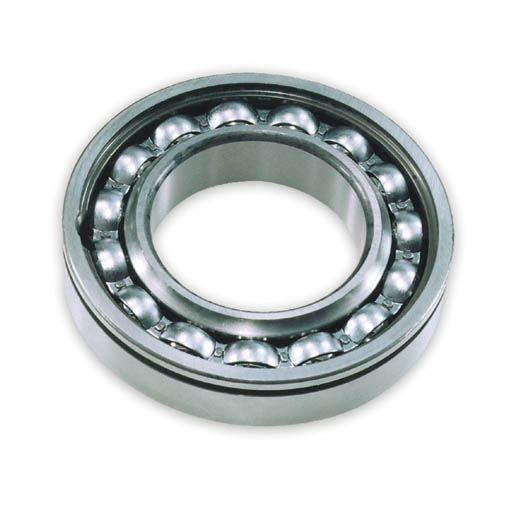

Timken 128WBR
Fafnir® Maximum Capacity Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
140 mm
Ball Type
STEEL
Manufacturing Part Number
128WBR
Dimensions
D - Outer Diameter
220 mm
Bearing Width
36 mm
Basic Load Ratings
Ce - Dynamic Radial Rating1
162900 N
C0 - Static Radial Rating
156000 N
Factors
Limiting Speed (Grease)
1389 rpm
Limiting Speed (Oil)
1667 rpm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
2.01 mm
r - Outer Ring "To Clear" Radius3
2.01 mm
da - Inner Ring Backing Diameter
162.66 mm
Da - Outer Ring Backing Diameter
200.51 mm
