Timken 132WBR

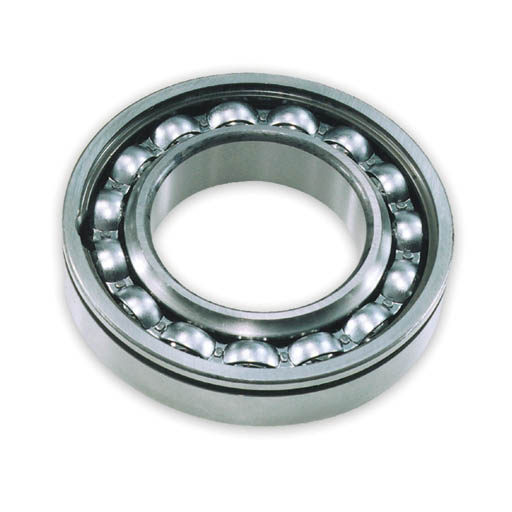

Fafnir® Maximum Capacity Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
160 mm
Ball Type
STEEL
Manufacturing Part Number
132WBR
Dimensions
D - Outer Diameter
250 mm
Bearing Width
40 mm
Basic Load Ratings
Ce - Dynamic Radial Rating1
207300 N
C0 - Static Radial Rating
203600 N
Factors
Limiting Speed (Grease)
1220 rpm
Limiting Speed (Oil)
1463 rpm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
2.49 mm
r - Outer Ring "To Clear" Radius3
2.49 mm
da - Inner Ring Backing Diameter
185.88 mm
Da - Outer Ring Backing Diameter
227.48 mm
