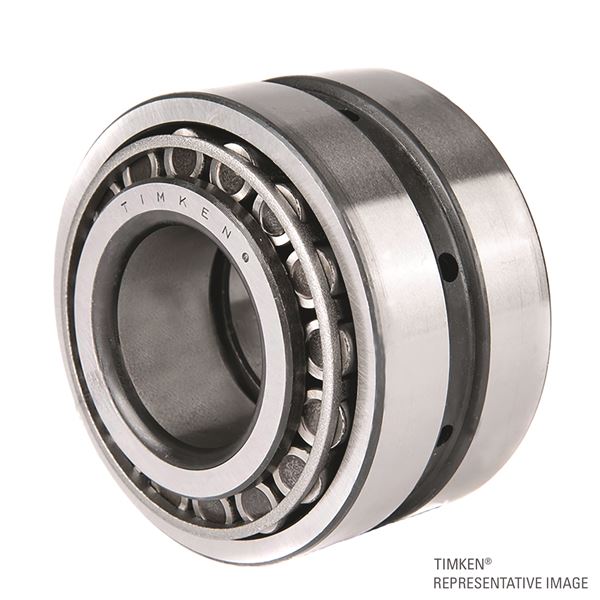

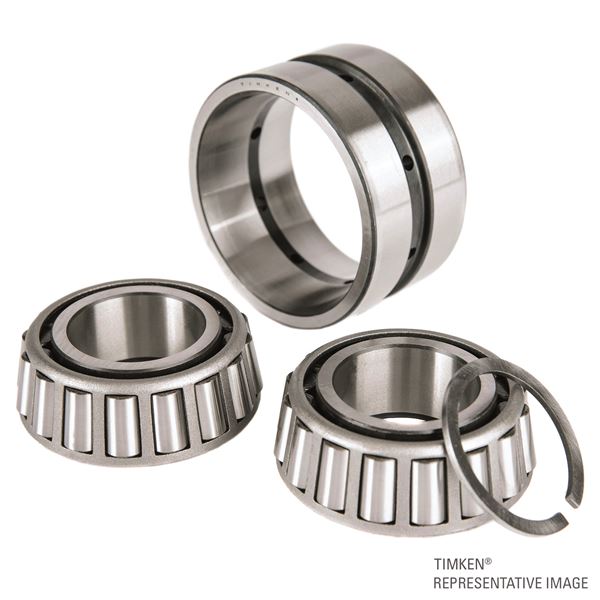

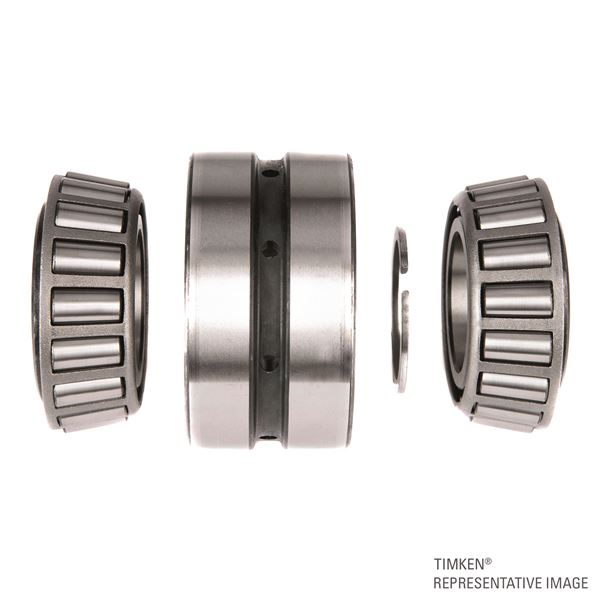

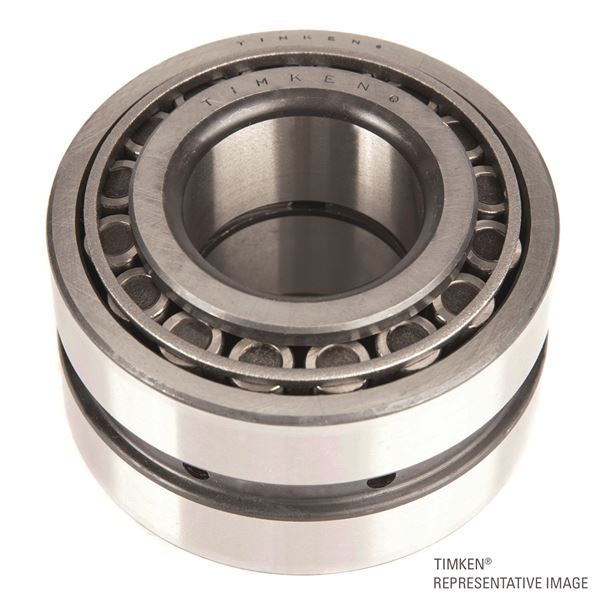

Timken 13889 – 13835D
Tapered Roller Bearings - TDO (Tapered Double Outer) Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
13800
Cone Part Number
13889
Cup Part Number
13835D
Design Unit
Inch
Cage Material
Stamped Steel
Related Assembly Number(s)
13889-90027
Dimensions
d - Bore
38.1 mm
D - Cup Outer Diameter
63.500 mm
B - Cone Width
11.908 mm
C - Double Cup Width
31.750 mm
T - Bearing Width across Cones
38.100 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
1.5 mm
r - Cup Backface "To Clear" Radius2
0.40 mm
db - Cone Backface Backing Diameter
45 mm
Da - Cup Frontface Backing Diameter
59.94 mm
Aa - Cage-Cone Backface Clearance
-0.3 mm
a - Effective Center Location3
-0.8 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)4
7040 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)5
47300 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)6
12300 N
C7
4170 N
Factors
K - Factor8
1.69
e - ISO Factor9
0.35
Y1 - ISO Factor10
1.95
Y2 - ISO Factor11
2.9
Cg - Geometry Factor12
0.0601
