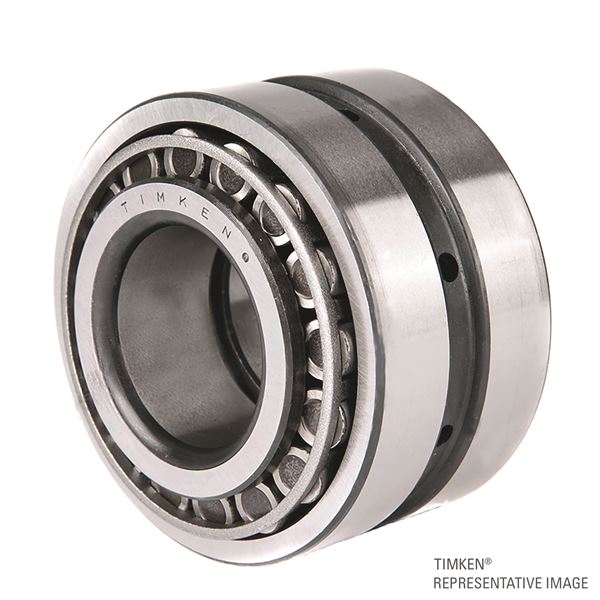

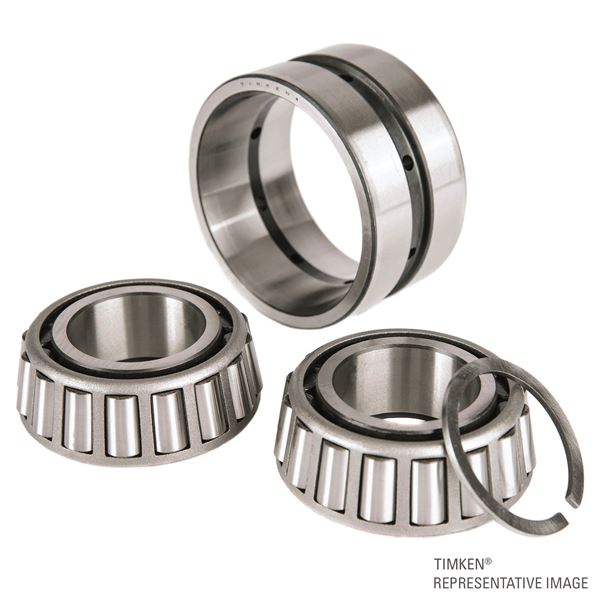

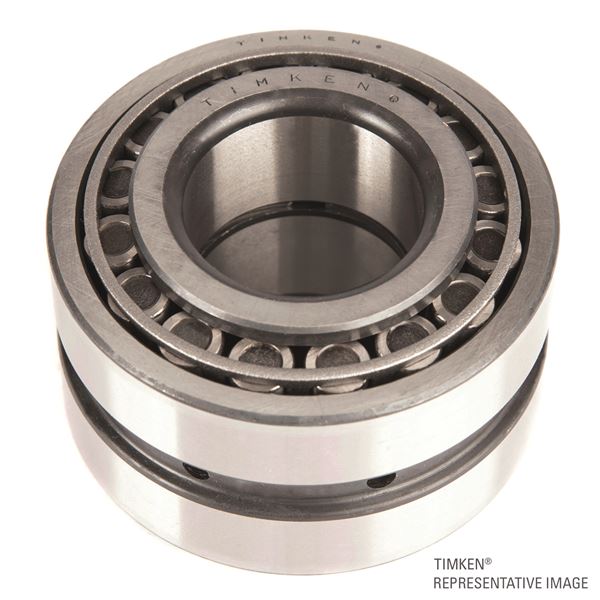

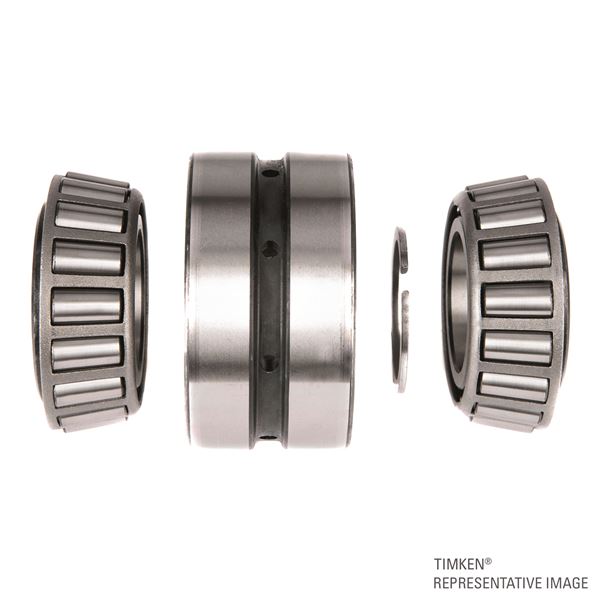

Timken 24112 – 24262D
Tapered Roller Bearings - TDO (Tapered Double Outer) Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
24000
Cone Part Number
24112
Cup Part Number
24262D
Design Unit
Inch
Cage Material
Stamped Steel
Dimensions
d - Bore
28.575 mm
D - Cup Outer Diameter
66.421 mm
B - Cone Width
18.974 mm
C - Double Cup Width
38.100 mm
T - Bearing Width across Cones
44.453 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
1.5 mm
r - Cup Backface "To Clear" Radius2
0.8 mm
db - Cone Backface Backing Diameter
36 mm
Da - Cup Frontface Backing Diameter
61.98 mm
Aa - Cage-Cone Backface Clearance
0 mm
a - Effective Center Location3
-4.8 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)4
14500 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)5
97300 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)6
25200 N
C7
8420 N
Factors
K - Factor8
1.72
e - ISO Factor9
0.34
Y1 - ISO Factor10
1.99
Y2 - ISO Factor11
2.96
Cg - Geometry Factor12
0.0589
