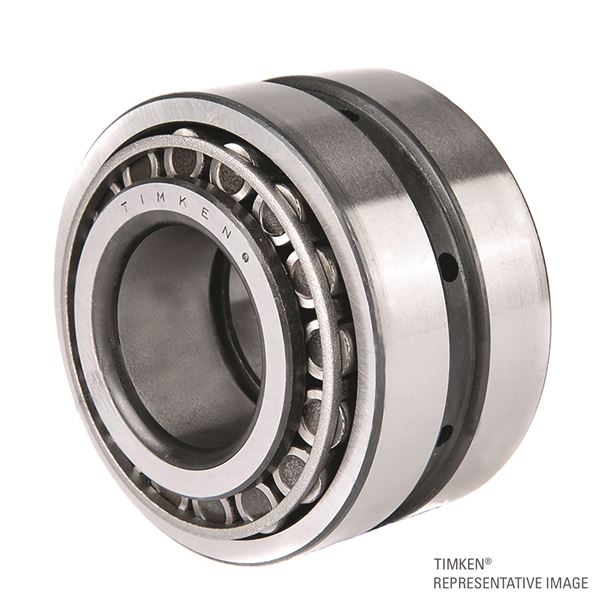

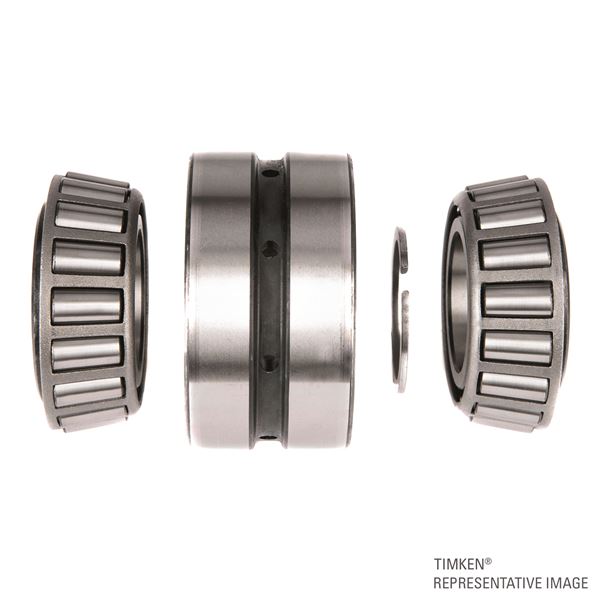

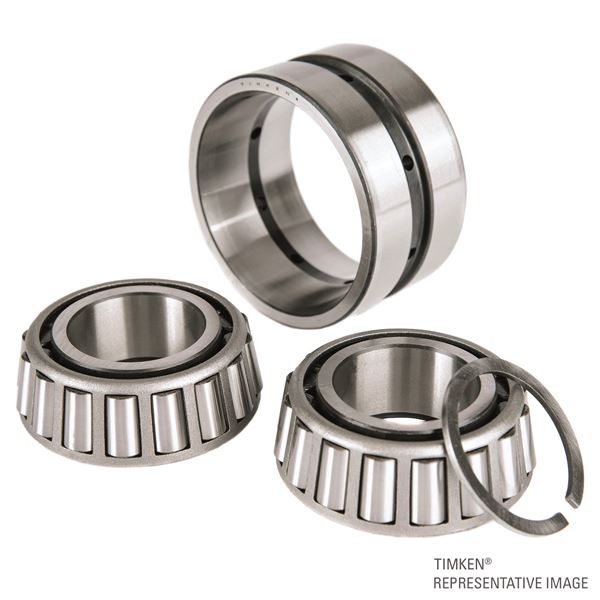

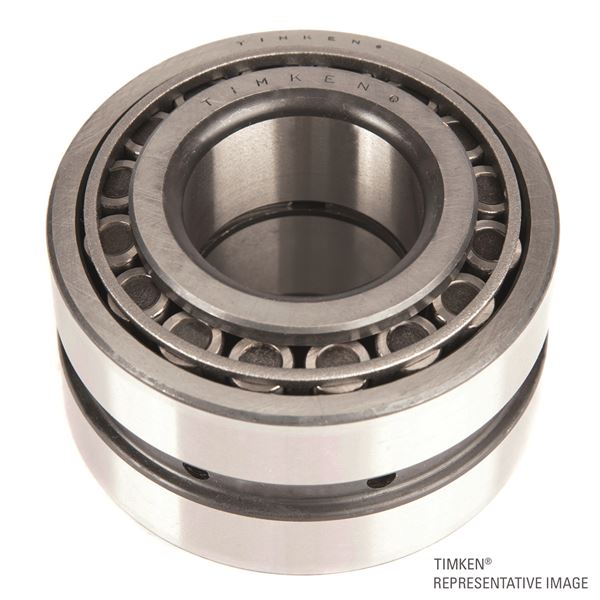

Timken 26126 – 26282D
Tapered Roller Bearings - TDO (Tapered Double Outer) Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
26000
Cone Part Number
26126
Cup Part Number
26282D
Design Unit
Inch
Cage Material
Stamped Steel
Dimensions
d - Bore
32.004 mm
D - Cup Outer Diameter
71.438 mm
B - Cone Width
18.923 mm
C - Double Cup Width
36.513 mm
T - Bearing Width across Cones
42.863 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
1.5 mm
r - Cup Backface "To Clear" Radius2
0.40 mm
db - Cone Backface Backing Diameter
39.5 mm
Da - Cup Frontface Backing Diameter
65.02 mm
Aa - Cage-Cone Backface Clearance
0 mm
a - Effective Center Location3
-4.1 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)4
15200 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)5
102000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)6
26500 N
C7
9390 N
Factors
K - Factor8
1.62
e - ISO Factor9
0.36
Y1 - ISO Factor10
1.87
Y2 - ISO Factor11
2.79
Cg - Geometry Factor12
0.063
