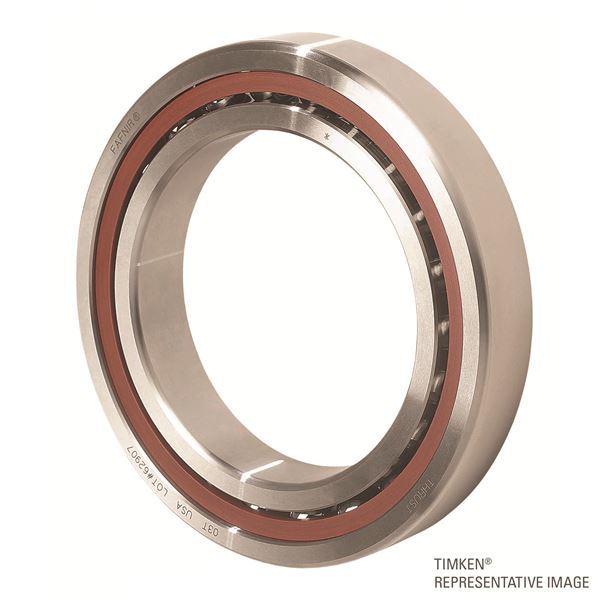

Timken 2MMVC9313HXCRSUM

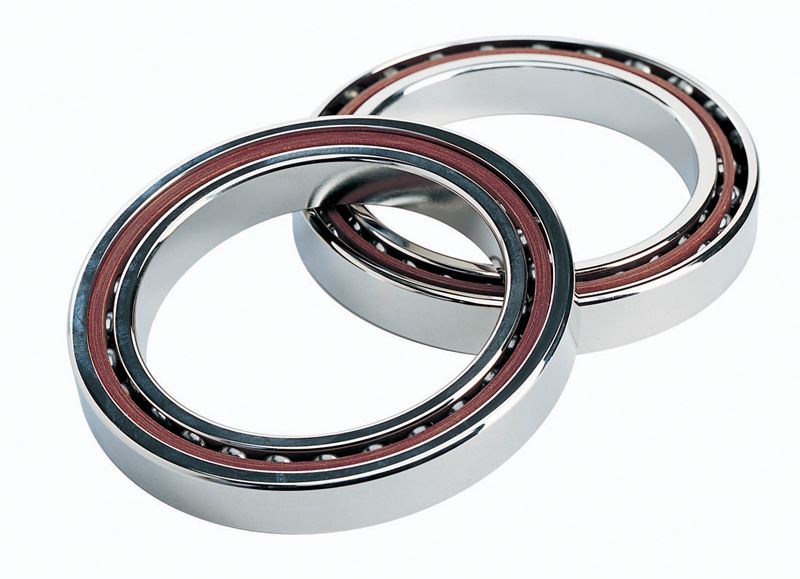

Fafnir® High Speed Spindle Angular Contact Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Rows per Set
Single
Seal Type
Standard
Design Units
Metric
d - Bore
65 mm
Ball Type
Ceramic
Cage Type
CR - Phenolic Outer Land Riding Cage
Precision Rating
ISO P4S (ABEC 7/9)
Dimensions
D - Outer Diameter
90 mm
Bearing Width
13 mm
Total Width
13 mm
Contact Angle
15 º
Basic Load Ratings
C0 - Static Radial Rating (per row)
9920 N
Ce - Dynamic Radial Rating (per row)1
15700 N
C1 ISO - Dynamic Radial Rating (per row)
14300 N
Factors
Limiting Speed (Grease) (per row)
21360 rpm
Limiting Speed (Oil)
42720 rpm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
1 mm
r - Outer Ring "To Clear" Radius3
1 mm
da - Inner Ring Backing Diameter
70.3 mm
Da - Outer Ring Backing Diameter
85.2 mm
