Timken 316KDD

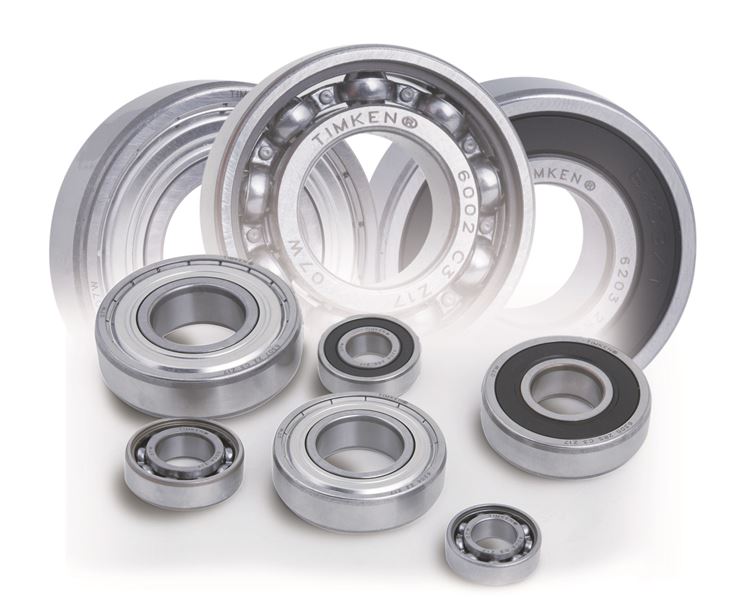

Fafnir® Deep Groove Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
80 mm
Ball Type
STEEL
Manufacturing Part Number
316KDDFS50000
Dimensions
D - Outer Diameter
170 mm
Bearing Width
39 mm
Basic Load Ratings
Ce - Dynamic Radial Rating1
136300 N
C0 - Static Radial Rating
86500 N
Factors
Limiting Speed (Grease)
2400 rpm
Limiting Speed (Oil)
2800 rpm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
2.11 mm
r - Outer Ring "To Clear" Radius3
2.11 mm
da - Inner Ring Backing Diameter
91.90 mm
Da - Outer Ring Backing Diameter
157.99 mm
