Timken 3212 AJ/C3
Timken® Double RowAngular Contact Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
60 mm
Features
Open
Ball Type
STEEL
Cage Type
Pressed
Cage Material
Steel

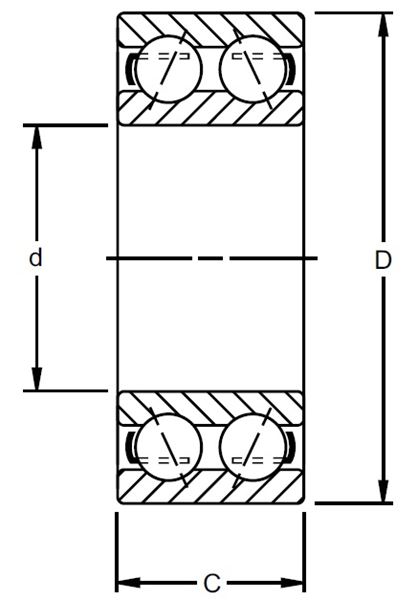

Dimensions
D - Outer Diameter
110 mm
C - Ring Width
36.5 mm
Contact Angle
30 º
Basic Load Ratings
C0 - Static Radial Rating
53600 N
C1 ISO - Dynamic Radial Rating
59900 N
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius1
1.5 mm
r - Outer Ring "To Clear" Radius2
1.5 mm
da - Inner Ring Backing Diameter
68.5 mm
Da - Outer Ring Backing Diameter
101.5 mm
