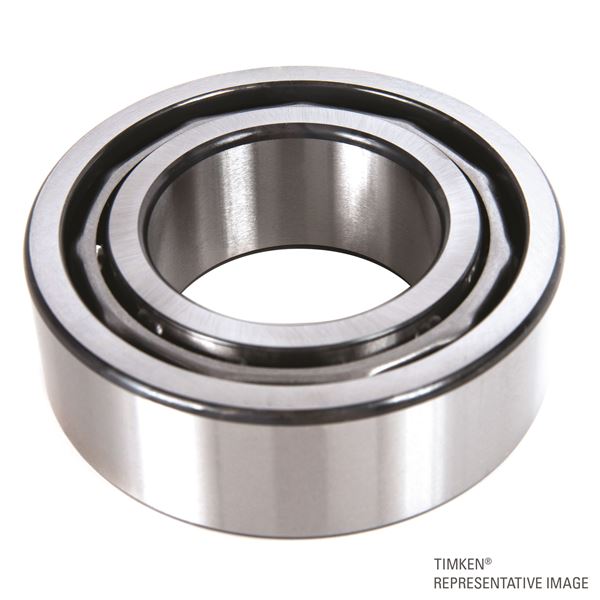

Timken 3310 AJ
Timken® Double RowAngular Contact Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
50 mm
Features
Open
Ball Type
STEEL
Cage Type
Pressed
Cage Material
Steel

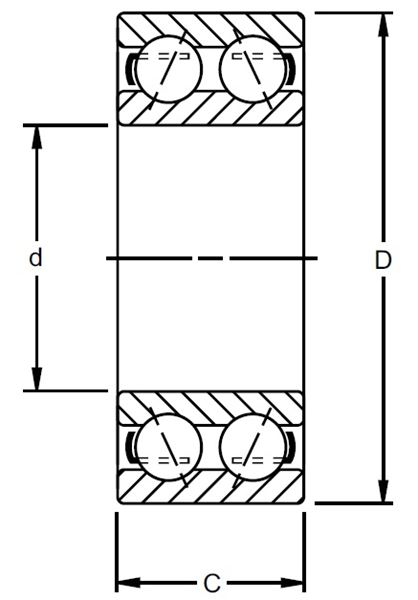

Dimensions
D - Outer Diameter
110 mm
C - Ring Width
44.4 mm
Contact Angle
30 º
Basic Load Ratings
C0 - Static Radial Rating
60100 N
C1 ISO - Dynamic Radial Rating
78900 N
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius1
2 mm
r - Outer Ring "To Clear" Radius2
2 mm
da - Inner Ring Backing Diameter
60 mm
Da - Outer Ring Backing Diameter
100.0 mm
