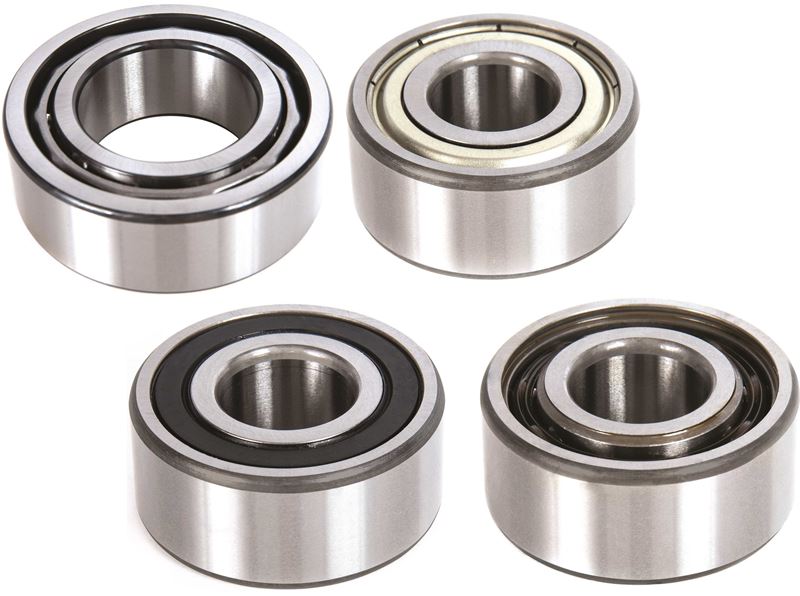

Timken 3318 AJ/C3

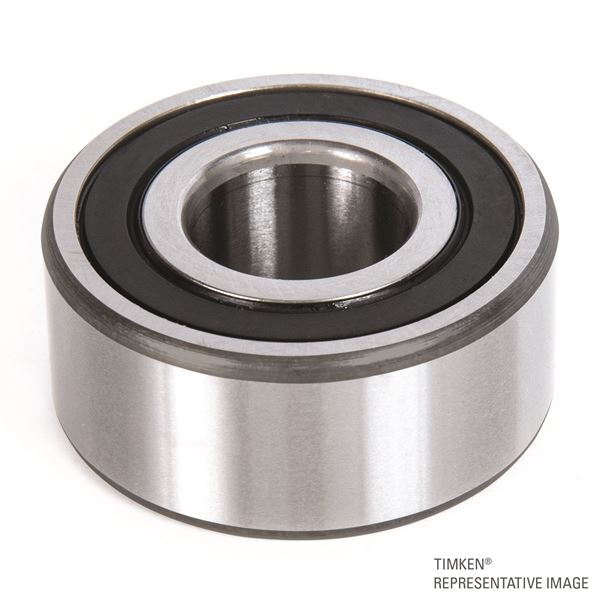

Timken® Double RowAngular Contact Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
90 mm
Features
Open
Ball Type
STEEL
Cage Type
Pressed
Cage Material
Steel
Dimensions
D - Outer Diameter
190 mm
C - Ring Width
73 mm
Contact Angle
30 º
Basic Load Ratings
C0 - Static Radial Rating
180000 N
C1 ISO - Dynamic Radial Rating
208000 N
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius1
3 mm
r - Outer Ring "To Clear" Radius2
3 mm
da - Inner Ring Backing Diameter
104 mm
Da - Outer Ring Backing Diameter
176.0 mm
