Timken 7219 BM/CN
Timken® Single RowAngular Contact Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
95 mm
Ball Type
STEEL
Cage Type
Machined
Cage Material
Brass
R - Inner Ring "Touch" Radius
0.6
r - Outer Ring "Touch" Radius
0.6
Features
Open

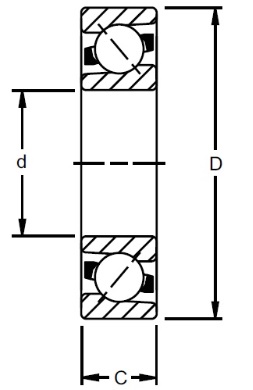

Dimensions
D - Outer Diameter
170 mm
Bearing Width
32 mm
Contact Angle
40 º
Basic Load Ratings
C0 - Static Radial Rating
100700 N
C1 ISO - Dynamic Radial Rating
115800 N
Factors
Limiting Speed (Grease)
3500 rpm
Limiting Speed (Oil)
4700 rpm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius1
1.1 mm
r - Outer Ring "To Clear" Radius2
1.1 mm
da - Inner Ring Backing Diameter
107 mm
Da - Outer Ring Backing Diameter
159.0 mm
