Timken 7220WN MBR
Fafnir® Single RowAngular Contact Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

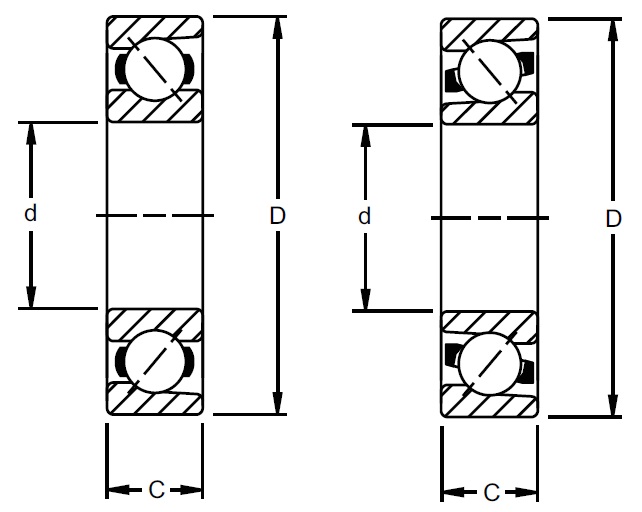

Dimensions
d - Bore
100 mm
D - Outer Diameter
180 mm
Bearing Width
34 mm
Contact Angle
40 º
Basic Load Ratings
C0 - Static Radial Rating
106000 N
Ce - Dynamic Radial Rating1
146000 N
Specifications
Ball Type
STEEL
Cage Type
Machined Bronze Cage
Design Units
Metric
Manufacturing Part Number
7220WNMBRC1
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
2 mm
r - Outer Ring "To Clear" Radius3
2 mm
da - Inner Ring Backing Diameter
129.720 mm
Da - Outer Ring Backing Diameter
151.510 mm
