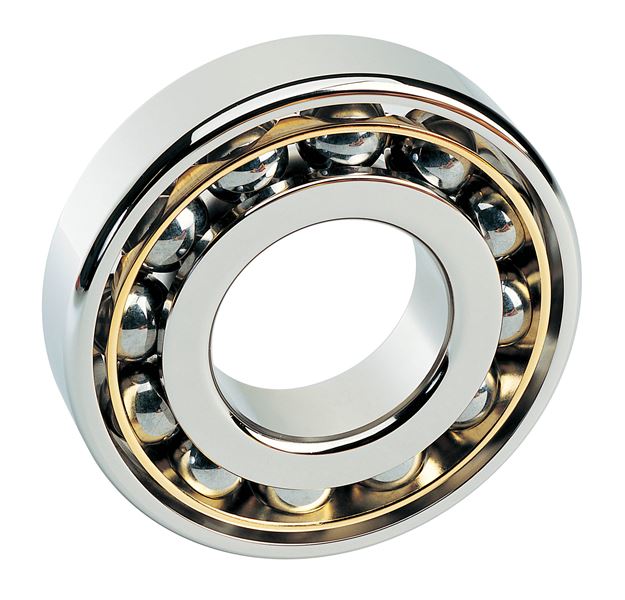

Timken 7322WN MBR SU
Fafnir® Single RowAngular Contact Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d - Bore
110 mm
D - Outer Diameter
240 mm
Bearing Width
50 mm
Contact Angle
40 º
Basic Load Ratings
C0 - Static Radial Rating
226000 N
Ce - Dynamic Radial Rating1
253000 N
Specifications
Ball Type
STEEL
Cage Type
Machined Bronze Cage
Design Units
Metric
Manufacturing Part Number
7322WNMBRSUC1
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
2.5 mm
r - Outer Ring "To Clear" Radius3
2.5 mm
da - Inner Ring Backing Diameter
160.570 mm
Da - Outer Ring Backing Diameter
196.160 mm
