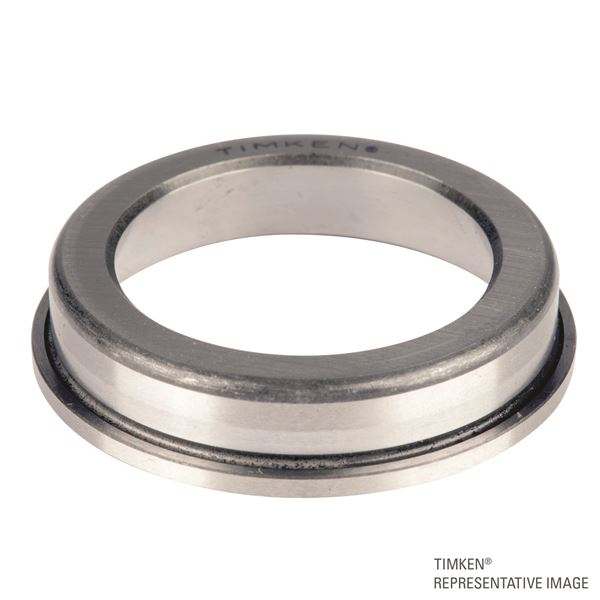

Timken 892-B
Tapered Roller Bearings - Single Flanged Cups - Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
895
Cup Part Number
892-B
Design Units
Imperial

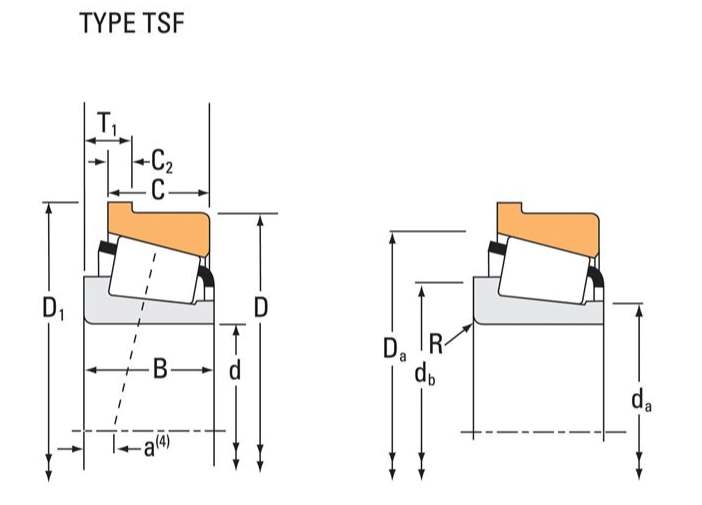

Dimensions
D - Cup Outer Diameter
228.600 mm
D1 - Flange Outer Diameter
238.023 mm
C - Cup Width
44.45 mm
C1 - Cup Flange Width
9.525 mm
Abutment and Fillet Dimensions
r - Cup Backface "To Clear" Radius1
3.30 mm
Da - Cup Frontface Backing Diameter
216.90 mm
Factors
K - Factor2
1.39
e - ISO Factor3
0.42
Y - ISO Factor4
1.43
Cg - Geometry Factor5
0.135
