Timken 95500 – 95925 (Y11S-95925)

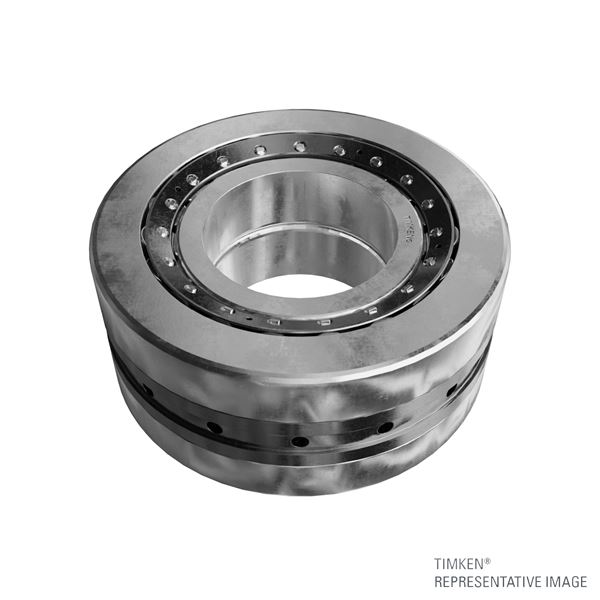

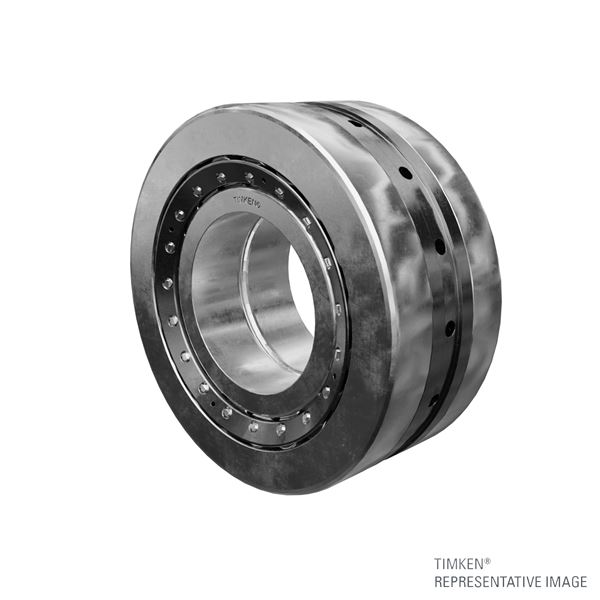

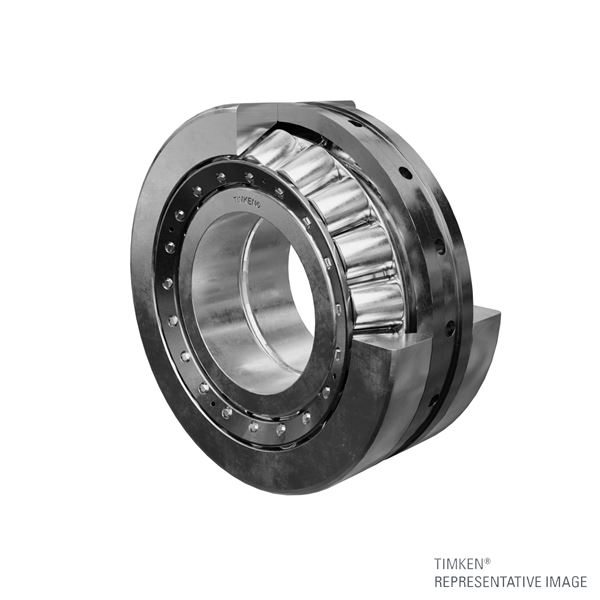

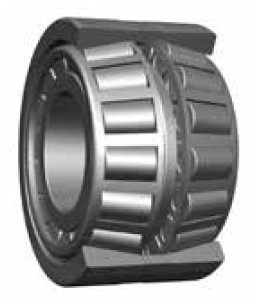

Tapered Roller Bearings - 2TS-DM (Matched Bearing Assembly, Direct Mount)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
95500 – 95925 (Y11S-95925)
Specifications
Cone Part Number
95500
Cup Part Number
95925
Related Assembly Number(s)
95500-90114
Outer Spacer Part Number
Y11S-95925
Design Unit
Inch
Dimensions
d - Bore
127 mm
D - Cup Outer Diameter
234.95 mm
T - Width
127 mm
B - Width
127 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
0.800 mm
r - Cup Backface "To Clear" Radius2
3.30 mm
db - Cone Backface Backing Diameter
154 mm
Da - Cup Frontface Backing Diameter
217.90 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
163000 N
C1 - Dynamic Radial Rating (1 million revolutions)4
1090000 N
C5
103000 N
C906
284000 N
Factors
K - Factor7
1.58
e - ISO Factor8
0.37
Y1 - ISO Factor9
1.83
Y2 - ISO Factor10
2.72
