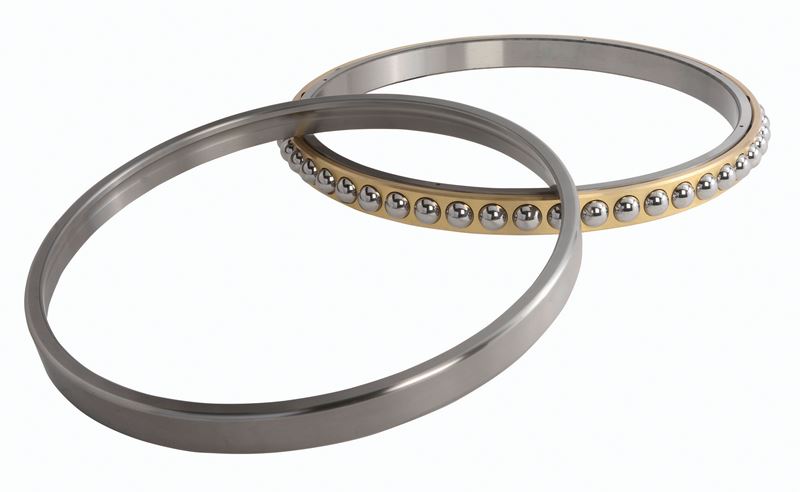

Timken 95BIC430 B3
Fafnir® Large Imperial Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Ball Type
STEEL
Manufacturing Part Number
95BIC430B3
Dimensions
D - Outer Diameter
323.85 mm
Bearing Width
41.275 mm
Basic Load Ratings
C0 - Static Radial Rating
202394 N
Ce - Dynamic Radial Rating
188160 N
Factors
Limiting Speed (Grease)
1060 rpm
Limiting Speed (Oil)
1240 rpm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius
4.1 mm
r - Outer Ring "To Clear" Radius1
4.1 mm
da - Inner Ring Backing Diameter
257.200 mm
Da - Outer Ring Backing Diameter
308 mm
