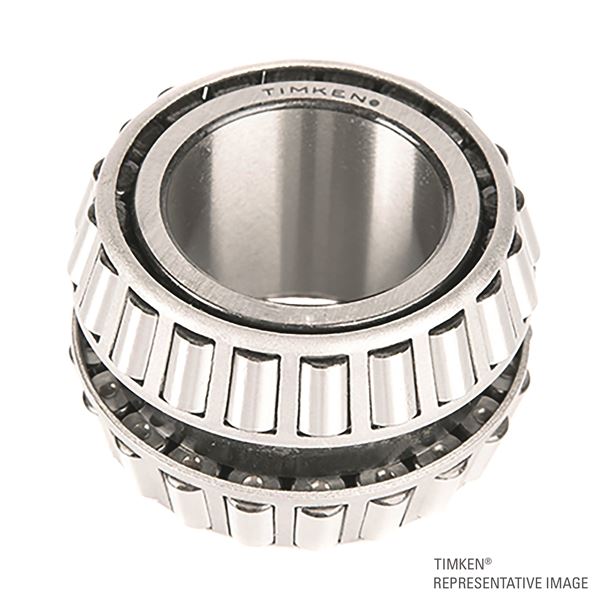

Timken 99587D
Tapered Roller Bearings - Double Tapered Cones - Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
99000
Cone Part Number
99587D
Design Units
Imperial
Cage Type
Stamped Steel
C1 - Dynamic Radial Rating (1 million revolutions)1
660000 N
C0 - Static Radial Rating
1030000 N

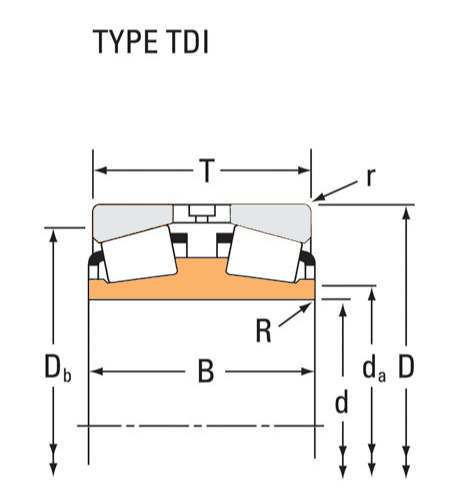

Dimensions
d - Cone Bore
149.225 mm
B - Double Cone Width
120.650 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius2
1.5 mm
da - Cone Frontface Backing Diameter
167 mm
Ab - Cage-Cone Frontface Clearance
4.8 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
171000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)4
1150000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)5
298000 N
C6
119000 N
Factors
K - Factor7
1.43
G1 - Heat Generation Factor (Roller-Raceway)
556
G2 - Heat Generation Factor (Rib-Roller End)
73.5
Cg - Geometry Factor8
0.146
