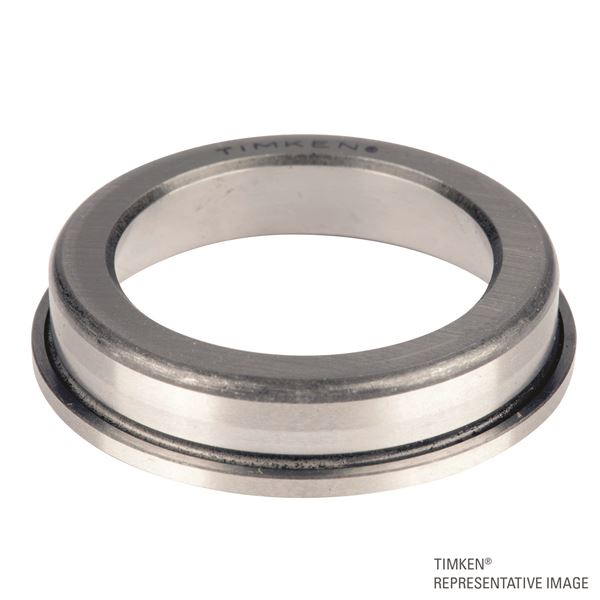

Timken A6157-B
Tapered Roller Bearings - Single Flanged Cups - Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
A6000
Cup Part Number
A6157-B
Design Units
Imperial
Dimensions
D - Cup Outer Diameter
39.992 mm
D1 - Flange Outer Diameter
43.066 mm
C - Cup Width
9.525 mm
C1 - Cup Flange Width
2.362 mm
Abutment and Fillet Dimensions
r - Cup Backface "To Clear" Radius1
1.3 mm
Da - Cup Frontface Backing Diameter
38.61 mm
Factors
K - Factor2
1.11
e - ISO Factor3
0.53
Y - ISO Factor4
1.14
Cg - Geometry Factor5
0.0404
