Timken AN 15/SK 6523/N 12/W 12
Push-Type Removable Sleeve, Locknut and Lockwasher
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
223K
Removal Nut O.D. C
98.55 mm
Bearing Number
22313K
Taper
1:12
Shaft Dimensions
Diameter d
60 mm
Tolerance1
-0.10 mm

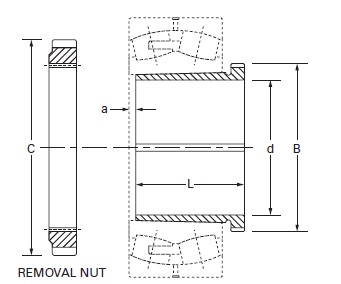

Adapter Dimensions
Major Diameter
73.1 mm
L2
42 mm
a
3.5 mm
Accessory Numbers
Removal Nut
AN 15
Sleeve
SK 6523
Locknut
N 12
Lockwasher and Lockplates
W 12
