Timken AN 17/SK 7523/N 13/W 13
Push-Type Removable Sleeve, Locknut and Lockwasher
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

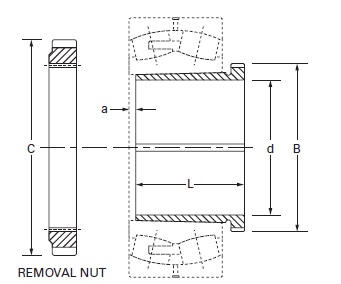

Specifications
Series
223K
Removal Nut O.D. C
112.04 mm
Bearing Number
22315K
Taper
1:12
Shaft Dimensions
Diameter d
65 mm
Tolerance1
-0.10 mm
Adapter Dimensions
Major Diameter
83.44 mm
L2
47 mm
a
3.5 mm
Accessory Numbers
Removal Nut
AN 17
Sleeve
SK 7523
Locknut
N 13
Lockwasher and Lockplates
W 13
