Timken AN 19/SK 8523/AN 15/W 15

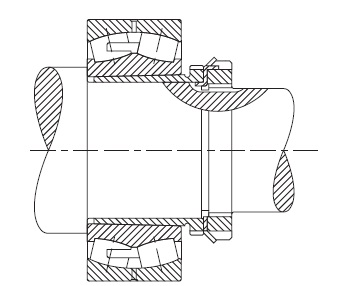

Push-Type Removable Sleeve, Locknut and Lockwasher
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
223K

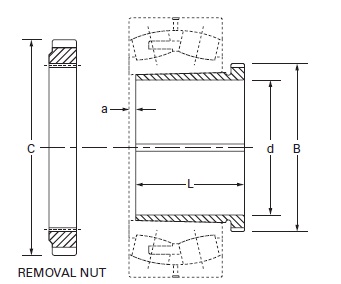

Removal Nut O.D. C
125.55 mm
Bearing Number
22317K
Taper
1:12
Shaft Dimensions
Diameter d
75 mm
Tolerance1
-0.10 mm
Adapter Dimensions
Major Diameter
93.35 mm
L2
75 mm
a
3.5 mm
Accessory Numbers
Removal Nut
AN 19
Sleeve
SK 8523
Locknut
AN 15
Lockwasher and Lockplates
W 15
