Timken AN 20/SK 9023/AN 16/W 16

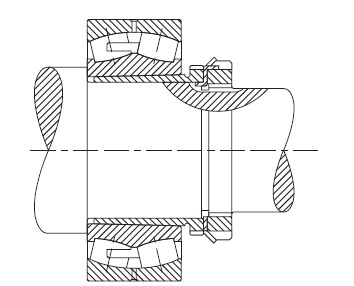

Push-Type Removable Sleeve, Locknut and Lockwasher
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
223K
Removal Nut O.D. C
131.9 mm
Bearing Number
22318K
Taper
1:12
Shaft Dimensions
Diameter d
80 mm
Tolerance1
-0.10 mm

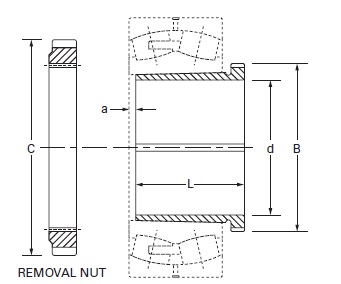

Adapter Dimensions
Major Diameter
98.12 mm
L2
80 mm
a
3.5 mm
Accessory Numbers
Removal Nut
AN 20
Sleeve
SK 9023
Locknut
AN 16
Lockwasher and Lockplates
W 16
