Timken ARN 24/SK 12023/AN 22/W 22
Push-Type Removable Sleeve, Locknut and Lockwasher
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
223K

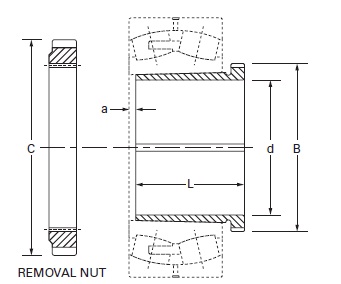

Removal Nut O.D. C
176.23 mm
Bearing Number
22324K
Taper
1:12
Shaft Dimensions
Diameter d
110 mm
Tolerance1
-0.13 mm
Adapter Dimensions
Major Diameter
130.28 mm
L2
105 mm
a
4 mm
Accessory Numbers
Removal Nut
ARN 24
Sleeve
SK 12023
Locknut
AN 22
Lockwasher and Lockplates
W 22
