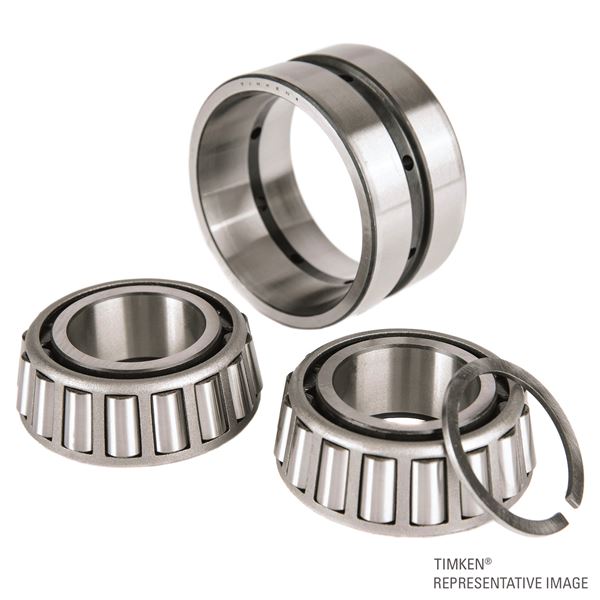

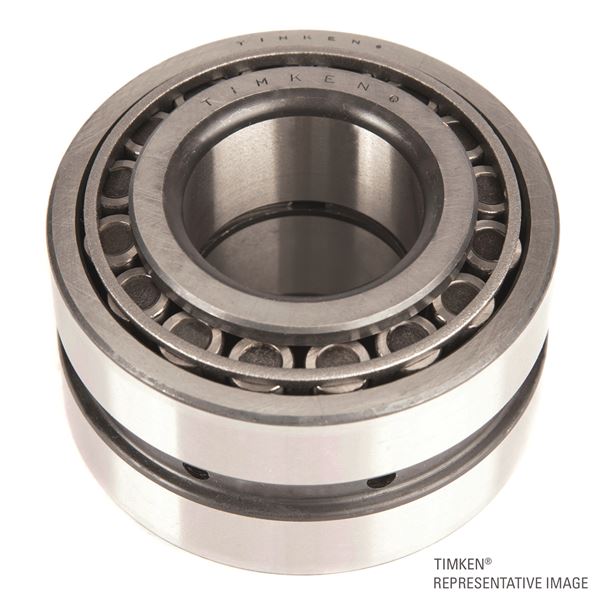

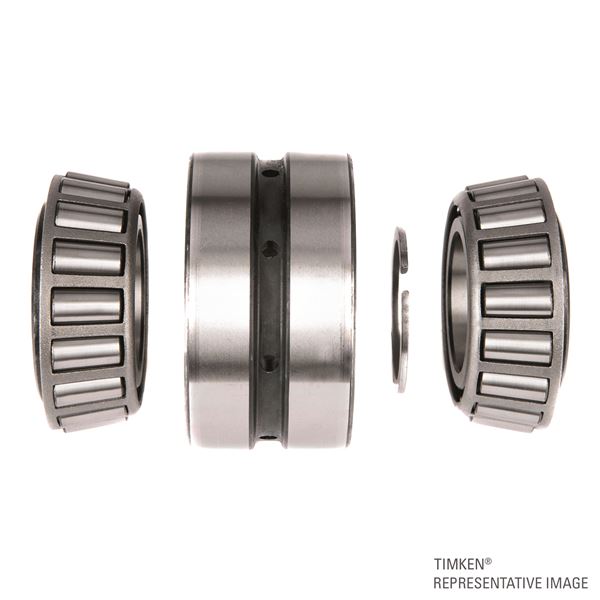

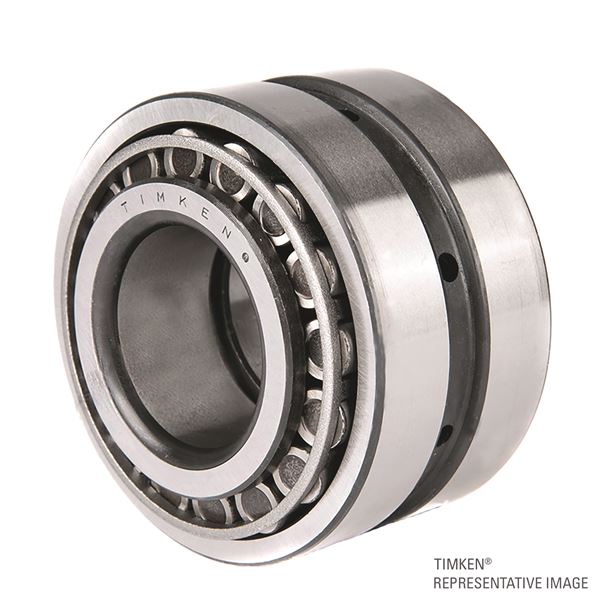

Timken EE107060 – 107105CD
Tapered Roller Bearings - TDO (Tapered Double Outer) Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
107000
Cone Part Number
EE107060
Cup Part Number
107105CD
Design Unit
Inch
Cage Material
Stamped Steel
Related Assembly Number(s)
EE107060-90065
Dimensions
d - Bore
152.400 mm
D - Cup Outer Diameter
268.288 mm
B - Cone Width
74.613 mm
C - Double Cup Width
125.413 mm
T - Bearing Width across Cones
160.338 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
6.4 mm
r - Cup Backface "To Clear" Radius2
1.5 mm
db - Cone Backface Backing Diameter
181 mm
Da - Cup Frontface Backing Diameter
249.43 mm
Aa - Cage-Cone Backface Clearance
6.9 mm
a - Effective Center Location3
-15 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)4
203000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)5
1370000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)6
354000 N
C7
135000 N
Factors
K - Factor8
1.51
e - ISO Factor9
0.39
Y1 - ISO Factor10
1.74
Y2 - ISO Factor11
2.59
Cg - Geometry Factor12
0.116
