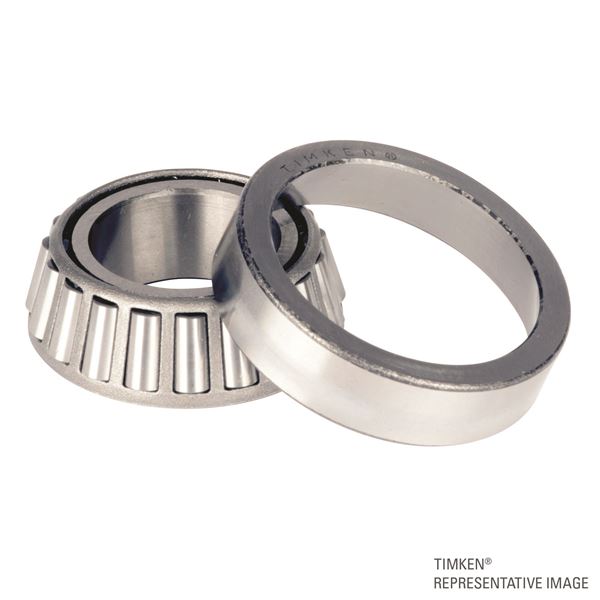

Timken JF9549 – JF9510
Tapered Roller Bearings - TS (Tapered Single) Metric
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
JF9500
Cone Part Number
JF9549
Cup Part Number
JF9510
Design Unit
Metric
Cage Material
Stamped Steel
Related Assembly Number(s)
JF9549-9X026

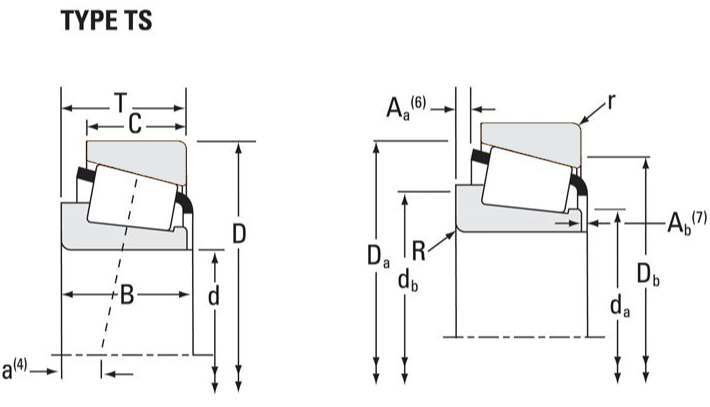

Dimensions
d - Bore
95 mm
D - Cup Outer Diameter
160 mm
B - Cone Width
46.000 mm
C - Cup Width
38 mm
T - Bearing Width
46.000 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
3.050 mm
r - Cup Backface "To Clear" Radius2
3.05 mm
da - Cone Frontface Backing Diameter
105.4 mm
db - Cone Backface Backing Diameter
111 mm
Da - Cup Frontface Backing Diameter
154.43 mm
Db - Cup Backface Backing Diameter
145.03 mm
Ab - Cage-Cone Frontface Clearance
3.8 mm
Aa - Cage-Cone Backface Clearance
0.8 mm
a - Effective Center Location3
-10.7 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)4
91900 N
C1 - Dynamic Radial Rating (1 million revolutions)5
354000 N
C0 - Static Radial Rating
506000 N
C6
53200 N
Factors
K - Factor7
1.73
e - ISO Factor8
0.34
Y - ISO Factor9
1.77
G1 - Heat Generation Factor (Roller-Raceway)
210
G2 - Heat Generation Factor (Rib-Roller End)
39.7
Cg - Geometry Factor10
0.0998
