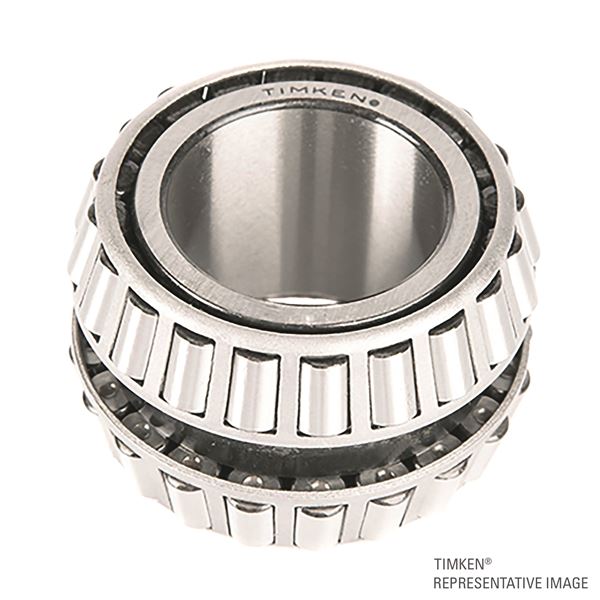

Timken M244249DXX
Tapered Roller Bearings - Double Tapered Cones - Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
M244200
Cone Part Number
M244249DXX
Design Units
Imperial
Cage Type
Stamped Steel
C1 - Dynamic Radial Rating (1 million revolutions)1
797000 N
C0 - Static Radial Rating
1370000 N
Note
This part has a non-standard shoulder design. Please email customer CAD for shoulder details to ensure the proper design of mating components.

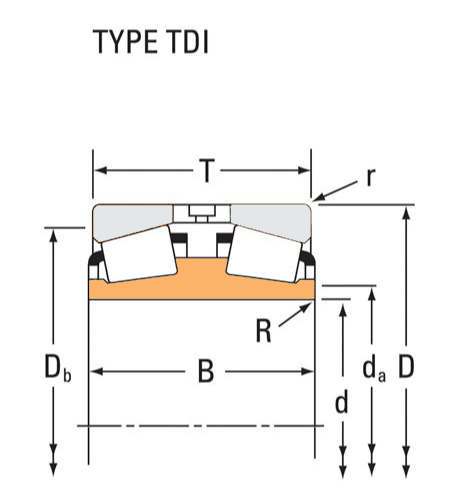

Dimensions
d - Cone Bore
220.663 mm
B - Double Cone Width
115.888 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius2
1.5 mm
da - Cone Frontface Backing Diameter
235 mm
Ab - Cage-Cone Frontface Clearance
3.6 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
207000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)4
1390000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)5
360000 N
C6
118000 N
Factors
K - Factor7
1.76
Cg - Geometry Factor8
0.136
