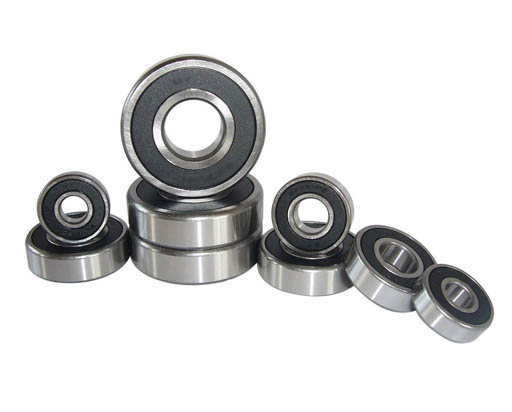

Timken S10P
Fafnir® Miniature Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Imperial
Ball Type
STEEL
Manufacturing Part Number
S10P Z5 FS50000;
Dimensions
D - Outer Diameter
50.8 mm
Bearing Width
12.7 mm
Basic Load Ratings
C0 - Static Radial Rating
8140 N
Ce - Dynamic Radial Rating
15500 N
Factors
Limiting Speed (Grease)
7832 rpm
Limiting Speed (Oil)
9138 rpm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius
0.8 mm
r - Outer Ring "To Clear" Radius1
0.800 mm
da - Inner Ring Backing Diameter
30.50 mm
Da - Outer Ring Backing Diameter
46.70 mm
