Timken WIR313K

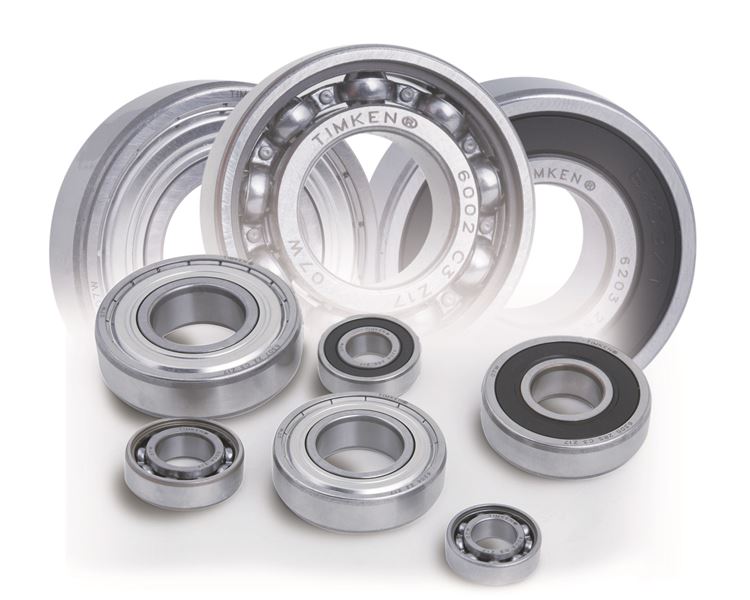

Fafnir® Deep Groove Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
65 mm
Ball Type
STEEL
Dimensions
D - Outer Diameter
140 mm
Bearing Width
58.74 mm
Basic Load Ratings
Ce - Dynamic Radial Rating1
102700 N
C0 - Static Radial Rating
59700 N
Factors
Limiting Speed (Grease)
2927 rpm
Limiting Speed (Oil)
3415 rpm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
2.11 mm
r - Outer Ring "To Clear" Radius3
2.11 mm
da - Inner Ring Backing Diameter
76.96 mm
Da - Outer Ring Backing Diameter
128.02 mm
